ECM Germany - Lever Steam Arm PARTS TO FIT ECM GERMANY COFFEE MACHINES

ECM Germany - Lever Steam Arm 446122-water-steam-tip 530138-o-ring 634280-rubber-antiscorching-clips-for-steam 407001-o-ring 406509-steam-arm-pipe-nut 560236-stainless-water-pipe-o-10mm-ecm-de 560270-stainless-steel-female-steam-nozzle rubber-antiscorching-clips-for-steam water-pipe-complet-original-profitec rubber-antiscorching-clips-for-steam 460039-spring 560073-expansion-valve 545308-lock-nut-1-4-inch-bsp 505028-stainless-steel-water-steam-tap-joint-bu 505025-water-steam-tap-brass-gasket-holder 560235-assembly-lever-water-steam-valve-ecm-de nozzle-4-holes-o-1-2-original-profitec nozzle-2-holes-o-1-2-original-profitec 560269-stainless-steel-female-steam-nozzle 700525-stainless-steam-arm-pipe-millenium 700330-t-teflon-gasket 560211-steam-valve-spring-13x27mm-ecm-de 522127-c-chrome-lock-nut-3-8-inch-bsp 700269-o-ring 560211-steam-valve-spring-13x27mm-ecm-de 560268-complete-steam-pipe-with-nozzle-2-holes 504003-water-steam-tap-lever-handle-m8 505029-upper-chromed-fitting-water-steam-valve 616686-o-ring 560210-valve-rod-ecm-de 505026-metal-pad-for-water-steam-valve-o-15-9 560235-assembly-lever-water-steam-valve-ecm-de 505024-water-steam-tap-teflon-gasket-o-24x1 460091-sleeve
Parts to Fit
4 payments of $0.00
Buy now, Pay Later

ECM Germany - Lever Steam Arm: Suits - Technika IV, Mechanika IV, Elektronika II

SKU ecm-germany-spare-parts-2
ECM Germany - Lever Steam Arm: Suits - Technika IV, Mechanika IV, Elektronika II
Brand ECM Germany
Suits Technika IV, Mechanika IV, Elektronika II

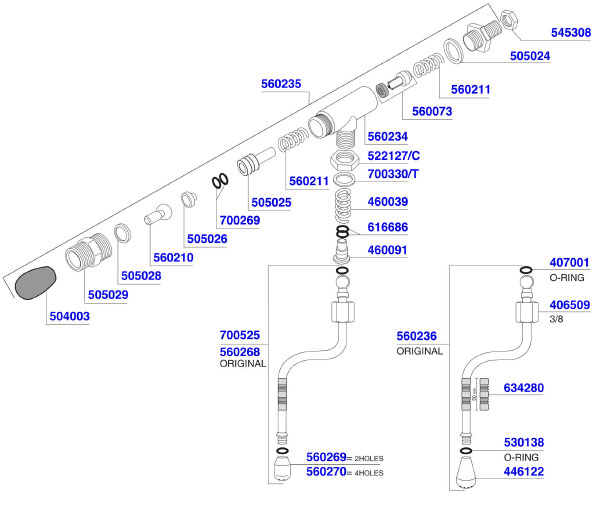

Select Parts from the Diagram above, or from the list below

Viton O-ring 03043 Ø 10.77×2.62mm
Viton O-ring 03043 Ø 10.77×2.62mm
to fit ECM Germany
SKU
700269
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
O-ring R6 EPDM Ø 7.20×1.90mm
O-ring R6 EPDM Ø 7.20×1.90mm
to fit ECM Germany
SKU
616686
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
EPDM O-ring 0106 Ø 6.75×1.78mm
EPDM O-ring 0106 Ø 6.75×1.78mm
to fit ECM Germany
SKU
530138
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Water/Steam Tap Jointnut O-ring R10 EPDM Ø 12.10×2.70mm
Water/Steam Tap Jointnut O-ring R10 EPDM Ø 12.10×2.70mm
to fit ECM Germany
SKU
407001
Units
Each
Add to Wishlist
$ 7 10
In Stock Ready for Dispatch
Flat PTFE Gasket Ø 21×16.8×2mm
Flat PTFE Gasket Ø 21×16.8×2mm
to fit ECM Germany
SKU
700330-t
Units
Each
Add to Wishlist
$ 4 90
Chromed Nut G. 3/8F Water/Steam Pipe – Hex. 22mm, H. 21mm
Chromed Nut G. 3/8F Water/Steam Pipe – Hex. 22mm, H. 21mm
to fit ECM Germany
SKU
406509
Units
Each
Add to Wishlist
$ 15 29
In Stock Ready for Dispatch
Water/Steam Tap Joint Spring Ø 10.8×8×29.8mm
Water/Steam Tap Joint Spring Ø 10.8×8×29.8mm
to fit ECM Germany
SKU
460039
Units
Each
Add to Wishlist
$ 10 40
In Stock Ready for Dispatch
Brass Ferrule Nut Ø 1/4" H. 5mm HEX.17mm
Brass Ferrule Nut Ø 1/4" H. 5mm HEX.17mm
to fit ECM Germany
SKU
545308
Units
Each
Add to Wishlist
$ 3 80
In Stock Ready for Dispatch
Stainless Steel Steam Wand Millenium 8"
Stainless Steel Steam Wand Millenium 8"
to fit ECM Germany
SKU
700525
Units
Each
Add to Wishlist
$ 54 89
Out of Stock
Steam Wand Bushing Ø 14.8/10.2×6×21.2mm
Steam Wand Bushing Ø 14.8/10.2×6×21.2mm
to fit ECM Germany
SKU
460091
Units
Each
Add to Wishlist
$ 15 51
Out of Stock
Water Tube Nozzle M10×1
Water Tube Nozzle M10×1
to fit ECM Germany
SKU
446122
Units
Each
Add to Wishlist
$ 41 80
In Stock Ready for Dispatch
Water/Steam Tap Lever Handle M8 Ø 26mm L. 42mm
Water/Steam Tap Lever Handle M8 Ø 26mm L. 42mm
to fit ECM Germany
SKU
504003
Units
Each
Add to Wishlist
$ 21 89
In Stock Ready for Dispatch
Water/Steam Tap Teflon Gasket Ø 24×19.3×2mm
Water/Steam Tap Teflon Gasket Ø 24×19.3×2mm
to fit ECM Germany
SKU
505024
Units
Each
Add to Wishlist
$ 4 90
Out of Stock
Water/Steam Tap Brass Gasket Holder Ø 15/9×43.6mm
Water/Steam Tap Brass Gasket Holder Ø 15/9×43.6mm
to fit ECM Germany
SKU
505025
Units
Each
Add to Wishlist
$ 4 90
Out of Stock
Water/Steam Tap Opening Pin M8 × 35mm Stainless Steel
Water/Steam Tap Opening Pin M8 × 35mm Stainless Steel
to fit ECM Germany
SKU
560210
Units
Each
Add to Wishlist
$ 12 65
Out of Stock
Upper Chromed Fitting Water/Steam Valve G. 1/2F
Upper Chromed Fitting Water/Steam Valve G. 1/2F
to fit ECM Germany
SKU
505029
Units
Each
Add to Wishlist
$ 8 20
Out of Stock
Water/Steam Tap Spring Ø 13.5×10.5×24.5mm
Water/Steam Tap Spring Ø 13.5×10.5×24.5mm
to fit ECM Germany
SKU
560211
Units
Each
Add to Wishlist
$ 8 20
Out of Stock
Stainless Water Pipe O̸10mm Ecm De
Stainless Water Pipe O̸10mm Ecm De
to fit ECM Germany
SKU
560236
Units
Each
Add to Wishlist
$ 52 47
Out of Stock
Stainless Steel Water/Steam Tap Joint Bushing Ø 18×12.4×5mm
Stainless Steel Water/Steam Tap Joint Bushing Ø 18×12.4×5mm
to fit ECM Germany
SKU
505028
Units
Each
Add to Wishlist
$ 8 20
Out of Stock
Metal Pad for Water/Steam Valve Ø 15/9×10/4mm
Metal Pad for Water/Steam Valve Ø 15/9×10/4mm
to fit ECM Germany
SKU
505026
Units
Each
Add to Wishlist
$ 9 30
Out of Stock
Steam Pipe Assembly Inox Cool Touch Ø 10mm – 3/8" F Nut, 2-Hole Nozzle, 180mm
Steam Pipe Assembly Inox Cool Touch Ø 10mm – 3/8" F Nut, 2-Hole Nozzle, 180mm
to fit ECM Germany
SKU
560268
Units
Each
Add to Wishlist
$ 78 38
Out of Stock
Assembly Lever Water/Steam Valve
Assembly Lever Water/Steam Valve
to fit ECM Germany
SKU
560235
Units
Each
Add to Wishlist
$ 174 90
Out of Stock
Stainless Steel Female Steam Nozzle 1/8"F – 4 Holes Ø 1.2mm – Ø 12.5×22mm
Stainless Steel Female Steam Nozzle 1/8"F – 4 Holes Ø 1.2mm – Ø 12.5×22mm
to fit ECM Germany
SKU
560270
Units
Each
Add to Wishlist
$ 17 88
Out of Stock
Stainless Steel Female Steam Nozzle 1/8"F – 2 Holes Ø 1.2mm – Ø 12.5×22mm
Stainless Steel Female Steam Nozzle 1/8"F – 2 Holes Ø 1.2mm – Ø 12.5×22mm
to fit ECM Germany
SKU
560269
Units
Each
Add to Wishlist
$ 17 88
Out of Stock
Rubber Antiscorching Clips for Steam Pipe Ø 10×50mm
Rubber Antiscorching Clips for Steam Pipe Ø 10×50mm
to fit ECM Germany
SKU
634280
Units
Each
Add to Wishlist
$ 8 20
Out of Stock
Chromed Ferrule Nut 3/8" – H. 5mm – Hex. 24mm
Chromed Ferrule Nut 3/8" – H. 5mm – Hex. 24mm
to fit ECM Germany
SKU
522127-c
Units
Each
Add to Wishlist
$ 13 92
Out of Stock
Inlet Valve Assembly Set Length 25mm
Inlet Valve Assembly Set Length 25mm
to fit ECM Germany
SKU
560073
Units
Each
Add to Wishlist
$ 24 09
Out of Stock
