Brugnetti - Steam and hot water valves 2 PARTS TO FIT BRUGNETTI COFFEE MACHINES

Brugnetti - Steam and hot water valves 2 703511 545348 530137 703517 700269 620425 700273 524558 524965 545309 603918 406508 530015 617523 543424 407001 406509 530138 616831/N 617528/N 703472/M 633432 613942 524769 543426 632324 634278

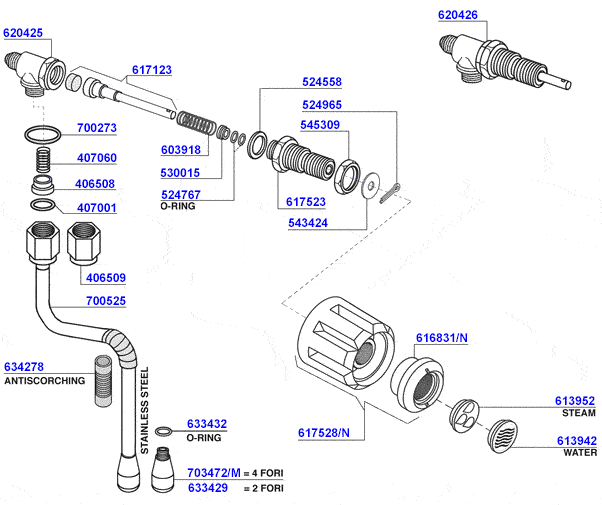

Select Parts from the Diagram or List Below

Chromed Hot Water Pipe Ø 8mm with 3/8F Nut and Diffuser Head L. 105mm
Chromed Hot Water Pipe Ø 8mm with 3/8F Nut and Diffuser Head L. 105mm
to fit Brugnetti
SKU
300045
Units
Each
Add to Wishlist
$ 54 89
Out of Stock Get notified when it arrives
Water/Steam Tap Joint Spring Guide Brass Bushing Ø 12/9×7×5mm
Water/Steam Tap Joint Spring Guide Brass Bushing Ø 12/9×7×5mm
to fit Brugnetti
SKU
406508
Units
Each
Add to Wishlist
$ 11 99
In Stock Ready for Dispatch
Chromed Nut G. 3/8F Water/Steam Pipe – Hex. 22mm, H. 21mm
Chromed Nut G. 3/8F Water/Steam Pipe – Hex. 22mm, H. 21mm
to fit Brugnetti
SKU
406509
Units
Each
Add to Wishlist
$ 15 29
In Stock Ready for Dispatch
Water/Steam Tap Jointnut O-ring R10 EPDM Ø 12.10×2.70mm
Water/Steam Tap Jointnut O-ring R10 EPDM Ø 12.10×2.70mm
to fit Brugnetti
SKU
407001
Units
Each
Add to Wishlist
$ 7 10
In Stock Ready for Dispatch
Water/Steam Tap Joint Spring Ø 12×9×15.5mm
Water/Steam Tap Joint Spring Ø 12×9×15.5mm
to fit Brugnetti
SKU
407060
Units
Each
Add to Wishlist
$ 8 20
In Stock Ready for Dispatch
Chromed Articulated Steam Wand Ø 8mm with 3/8F Nut – 170mm
Chromed Articulated Steam Wand Ø 8mm with 3/8F Nut – 170mm
to fit Brugnetti
SKU
460058
Units
Each
Add to Wishlist
$ 54 89
Out of Stock Get notified when it arrives
"Copper En" Flat Gasket Ø 22×16×2.5mm
"Copper En" Flat Gasket Ø 22×16×2.5mm
to fit Brugnetti
SKU
524558
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Green Viton O-ring R5 Ø 5.70×1.90mm
Green Viton O-ring R5 Ø 5.70×1.90mm
to fit Brugnetti
SKU
524767
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Stainless Steel Cotter Pin Ø 2×12mm Uni 1336
Stainless Steel Cotter Pin Ø 2×12mm Uni 1336
to fit Brugnetti
SKU
524965
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Water/Steam Valve Sleeve Ø 6×9mm Brass
Water/Steam Valve Sleeve Ø 6×9mm Brass
to fit Brugnetti
SKU
530015
Units
Each
Add to Wishlist
$ 6
In Stock Ready for Dispatch
EPDM O-ring Gasket 108 Ø 8.73×1.78mm
EPDM O-ring Gasket 108 Ø 8.73×1.78mm
to fit Brugnetti
SKU
530137
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
EPDM O-ring 0106 Ø 6.75×1.78mm
EPDM O-ring 0106 Ø 6.75×1.78mm
to fit Brugnetti
SKU
530138
Units
Each
Add to Wishlist
$ 16 99
In Stock Ready for Dispatch
Zinc-plated Flat Washer Ø 18×6.5×1.5mm
Zinc-plated Flat Washer Ø 18×6.5×1.5mm
to fit Brugnetti
SKU
543424
Units
Each
Add to Wishlist
$ 3 80
In Stock Ready for Dispatch
Brass Valve Washer 21×6.1×1.5mm
Brass Valve Washer 21×6.1×1.5mm
to fit Brugnetti
SKU
543426
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Brass Ferrule G. 1/2" — H. 7mm — HEX.25mm
Brass Ferrule G. 1/2" — H. 7mm — HEX.25mm
to fit Brugnetti
SKU
545309
Units
Each
Add to Wishlist
$ 6
In Stock Ready for Dispatch
Grinding Burrs Fixing Screw M4×8mm
Grinding Burrs Fixing Screw M4×8mm
to fit Brugnetti
SKU
545348
Units
Each
Add to Wishlist
$ 6
In Stock Ready for Dispatch
Water/Steam Tap Shaft Spring Ø 10.4×7.7×33.9mm
Water/Steam Tap Shaft Spring Ø 10.4×7.7×33.9mm
to fit Brugnetti
SKU
603918
Units
Each
Add to Wishlist
$ 10 40
In Stock Ready for Dispatch
Water Valve White Knob Cap
Water Valve White Knob Cap
to fit Brugnetti
SKU
613942
Units
Each
Add to Wishlist
$ 10 40
In Stock Ready for Dispatch
White Insert for Steam Handwheel
White Insert for Steam Handwheel
to fit Brugnetti
SKU
613952
Units
Each
Add to Wishlist
$ 10 40
Out of Stock Get notified when it arrives
Knob Cap No Stop
Knob Cap No Stop
to fit Brugnetti
SKU
616831-n
Units
Each
Add to Wishlist
$ 18 59
In Stock Ready for Dispatch
Complete Water/Steam Valve Stem
Complete Water/Steam Valve Stem
to fit Brugnetti
SKU
617123
Units
Each
Add to Wishlist
$ 25 41
Out of Stock Get notified when it arrives
Brass Valve Pin – 3 Threads – Pitch 2mm – HEX.26mm
Brass Valve Pin – 3 Threads – Pitch 2mm – HEX.26mm
to fit Brugnetti
SKU
617523
Units
Each
Add to Wishlist
$ 38 72
In Stock Ready for Dispatch
Water/Steam Tap Knob Thread 2mm
Water/Steam Tap Knob Thread 2mm
to fit Brugnetti
SKU
617528-n
Units
Each
Add to Wishlist
$ 36 19
In Stock Ready for Dispatch
Steam/Water Valve Body with Joint Connection 3/8"M and Flare Fitting 1/4"M
Steam/Water Valve Body with Joint Connection 3/8"M and Flare Fitting 1/4"M
to fit Brugnetti
SKU
620425
Units
Each
Add to Wishlist
$ 32 89
Out of Stock Get notified when it arrives
Steam/Water Valve Without Tube – Flare Connection 1/4" M × 3/8" M
Steam/Water Valve Without Tube – Flare Connection 1/4" M × 3/8" M
to fit Brugnetti
SKU
620426
Units
Each
Add to Wishlist
$ 74 80
Out of Stock Get notified when it arrives
Tap Assembly Water/Steam Connection 1/4" M × 3/8" M
Tap Assembly Water/Steam Connection 1/4" M × 3/8" M
to fit Brugnetti
SKU
620426-f
Units
Each
Add to Wishlist
$ 24 86
Out of Stock Get notified when it arrives
Stainless Steel Water/Steam Valve Without Nozzle 1/4" M × 3/8" M
Stainless Steel Water/Steam Valve Without Nozzle 1/4" M × 3/8" M
to fit Brugnetti
SKU
620426-x
Units
Each
Add to Wishlist
$ 39 82
Out of Stock Get notified when it arrives
Spare Part for Commercial Espresso Machines
Spare Part for Commercial Espresso Machines
to fit Brugnetti
SKU
632318
Units
Each
Add to Wishlist
$ 19 58
Out of Stock Get notified when it arrives
Chromed Steam Tap
Chromed Steam Tap
to fit Brugnetti
SKU
632321
Units
Each
Add to Wishlist
$ 6
Out of Stock Get notified when it arrives
Chromed Water Tap
Chromed Water Tap
to fit Brugnetti
SKU
632323
Units
Each
Add to Wishlist
$ 6
Out of Stock Get notified when it arrives
Water/Steam Tap Knob – Thread 2mm, Connections Ø 1/4"–3/8"
Water/Steam Tap Knob – Thread 2mm, Connections Ø 1/4"–3/8"
to fit Brugnetti
SKU
632324
Units
Each
Add to Wishlist
$ 19 58
In Stock Ready for Dispatch
Water/Steam Pipe Spout Breaker Fitting G. 1/8×0.75 — Hole Ø 5mm
Water/Steam Pipe Spout Breaker Fitting G. 1/8×0.75 — Hole Ø 5mm
to fit Brugnetti
SKU
632348
Units
Each
Add to Wishlist
$ 13 09
Out of Stock Get notified when it arrives
Stainless Steel Male Steam Nozzle M8.5×0.75 — 2 Holes Ø 1.5mm — Ø 10.5×27mm
Stainless Steel Male Steam Nozzle M8.5×0.75 — 2 Holes Ø 1.5mm — Ø 10.5×27mm
to fit Brugnetti
SKU
633429
Units
Each
Add to Wishlist
$ 20 08
In Stock Ready for Dispatch
Or Gasket Stainless Steel Steam Nozzle Ø 6×1mm
Or Gasket Stainless Steel Steam Nozzle Ø 6×1mm
to fit Brugnetti
SKU
633432
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Stainless Steel Steam Nozzle 3 Holes Ø 1/8" F
Stainless Steel Steam Nozzle 3 Holes Ø 1/8" F
to fit Brugnetti
SKU
633433
Units
Each
Add to Wishlist
$ 20 08
Out of Stock Get notified when it arrives
Female Steam Nozzle Stainless Steel 1/8F — 4 Holes Ø 1mm — 15×28mm
Female Steam Nozzle Stainless Steel 1/8F — 4 Holes Ø 1mm — 15×28mm
to fit Brugnetti
SKU
633433-4
Units
Each
Add to Wishlist
$ 8 20
Out of Stock Get notified when it arrives
Antiscorching Clips for Steam Pipe Ø 8mm – L. 35mm
Antiscorching Clips for Steam Pipe Ø 8mm – L. 35mm
to fit Brugnetti
SKU
634278
Units
Each
Add to Wishlist
$ 8 20
In Stock Ready for Dispatch
Rubber Antiscorching Clips for Steam Pipe Ø 10×50mm
Rubber Antiscorching Clips for Steam Pipe Ø 10×50mm
to fit Brugnetti
SKU
634280
Units
Each
Add to Wishlist
$ 8 20
Out of Stock Get notified when it arrives
Viton O-ring 03043 Ø 10.77×2.62mm
Viton O-ring 03043 Ø 10.77×2.62mm
to fit Brugnetti
SKU
700269
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
EPDM O-ring 03050 Ø 15.8×2.62mm
EPDM O-ring 03050 Ø 15.8×2.62mm
to fit Brugnetti
SKU
700273
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Stainless Steel Steam Wand Millenium 8"
Stainless Steel Steam Wand Millenium 8"
to fit Brugnetti
SKU
700525
Units
Each
Add to Wishlist
$ 54 89
Out of Stock Get notified when it arrives
Stainless Steel Male Steam Nozzle 8.5×0.75 Thread – 4 Holes Ø 1.5mm – Ø 10×27mm
Stainless Steel Male Steam Nozzle 8.5×0.75 Thread – 4 Holes Ø 1.5mm – Ø 10×27mm
to fit Brugnetti
SKU
703472-m
Units
Each
Add to Wishlist
$ 20 08
In Stock Ready for Dispatch
Water/Steam Tap Viton Gasket Ø 15×3.5×4mm
Water/Steam Tap Viton Gasket Ø 15×3.5×4mm
to fit Brugnetti
SKU
703511
Units
Each
Add to Wishlist
$ 9 30
In Stock Ready for Dispatch
Viton O-ring Gasket 117 Ø 13.10×2.62mm
Viton O-ring Gasket 117 Ø 13.10×2.62mm
to fit Brugnetti
SKU
703512
Units
Each
Add to Wishlist
$ 6
Out of Stock Get notified when it arrives
Water/Steam Tap Joint Gasket Ø 24×20×2.5mm
Water/Steam Tap Joint Gasket Ø 24×20×2.5mm
to fit Brugnetti
SKU
703517
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
