Carimali - Elements and boiler components PARTS TO FIT CARIMALI COFFEE MACHINES

616597-sirai-pressurestat-1-4inch-bsp-thread-3-pole-0-5-1-4-bar- 703803-touch-pad-with-support-system 620405-gicar-flowmeter-1-8-inch-bsp-with-led 551934-stainless-screw-m4x10 700653-22-relay-ca4-9-220v-m30-classic 703856-11-relay-110v-4-poles 530143-turbine-o-ring 617903-g-gicar-flowmeter-impeller-wheel 615978-t-flowmeter-and-soleniod-plug 700253-11-solenoid-valve-1-8-1-8-inch-bsp-110v 700253-22-solenoid-valve-1-8-1-8-inch-bsp-220v 700737-electronic-autofill-box-rl30-1e-2cf-220v 700737-11-electronic-autofill-box-rl30-1e-2cf-110v 615978-p-solenoid-valve-small-plug 620419-gear-pump-for-milk 703857-digital-push-button-system 703872-touch-pad-card-h20 703855-2-pole-pressurestat-1-4-inch-bsp 703852-lower-injector-pipe 524555-copper-gasket-3-8-inch-bsp 703854-boiler-gasket-10-holes 542794-boiler-stud-m10 400826-t-heating-element-teflon-gasket-42x54x3mm 400821-t-boiler-flange-teflon-gasket 524555-copper-gasket-3-8-inch-bsp 615264-a 524555-copper-gasket-3-8-inch-bsp 700217-safety-valve-3-8-inch-bsp 700268-safety-valve-m19-thread 524556-copper-gasket-23x19x1mm 703851-injector-pipe-85deg 703850-injector-pipe-95deg 618970-boiler-anti-vacuum-valve-with-1-4-inch-bsp-thread-with-long-pin 524554-copper-gasket-1-4-inch-bsp 618968-boiler-anti-vacuum-valve-with-1-4-inch-bsp-thread 700750-boiler-anti-vacuum-valve-with-1-4-inch-bsp-thread
Parts to Fit
4 payments of $0.00
Buy now, Pay Later

SKU carimali-spare-parts-8
Elements and boiler components
Brand Carimali

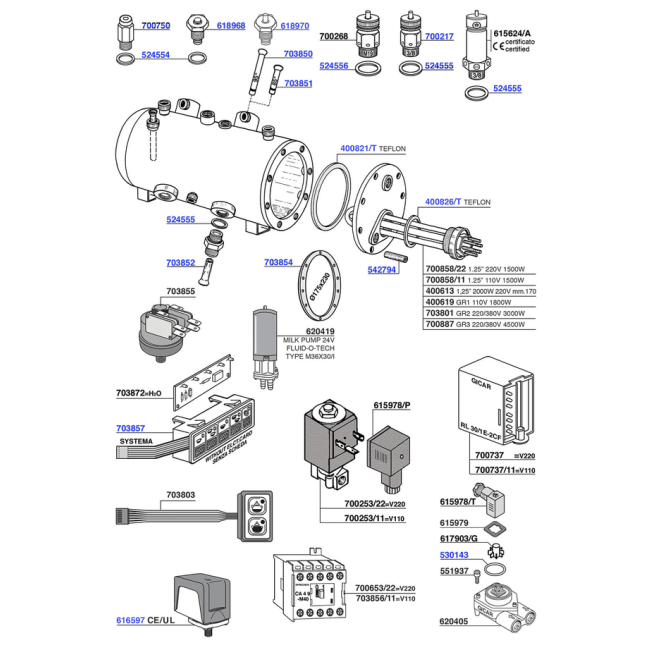

Select Parts from the Diagram above, or from the list below

Copper Gasket G. 1/4" Ø 17.8×13.2×1.5mm
Copper Gasket G. 1/4" Ø 17.8×13.2×1.5mm
to fit Carimali
SKU
524554
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Copper Gasket G. 3/8" Ø 22.8×17×1.5mm
Copper Gasket G. 3/8" Ø 22.8×17×1.5mm
to fit Carimali
SKU
524555
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Safety Valve Copper Gasket M19 Ø23×19×1mm
Safety Valve Copper Gasket M19 Ø23×19×1mm
to fit Carimali
SKU
524556
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Silicone Flowmeter Lid Gasket OR 2112 Ø 28.30×1.78mm
Silicone Flowmeter Lid Gasket OR 2112 Ø 28.30×1.78mm
to fit Carimali
SKU
530143
Units
Each
Add to Wishlist
$ 4 24
In Stock Ready for Dispatch
Stainless Steel Boiler Flange Stud Ø 10×40mm
Stainless Steel Boiler Flange Stud Ø 10×40mm
to fit Carimali
SKU
542794
Units
Each
Add to Wishlist
$ 9 30
In Stock Ready for Dispatch
Stainless Steel Solenoid Valve Fixing Screw M4×10mm
Stainless Steel Solenoid Valve Fixing Screw M4×10mm
to fit Carimali
SKU
551934
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Three-Phase Pressure Switch P302/6 0.5–1.4 Bar 30A 1/4" M
Three-Phase Pressure Switch P302/6 0.5–1.4 Bar 30A 1/4" M
to fit Carimali
SKU
616597
Units
Each
Add to Wishlist
$ 93 01
In Stock Ready for Dispatch
Boiler Anti-vacuum Valve G. 1/4"
Boiler Anti-vacuum Valve G. 1/4"
to fit Carimali
SKU
618968
Units
Each
Add to Wishlist
$ 24 53
In Stock Ready for Dispatch
Boiler Anti-vacuum Valve G. 1/4M With Long Pin
Boiler Anti-vacuum Valve G. 1/4M With Long Pin
to fit Carimali
SKU
618970
Units
Each
Add to Wishlist
$ 30 80
In Stock Ready for Dispatch
Gicar Flowmeter G. 1/4F–1/4F with LED – Orifice Ø 1.15mm NSF (9.0.25.02G)
Gicar Flowmeter G. 1/4F–1/4F with LED – Orifice Ø 1.15mm NSF (9.0.25.02G)
to fit Carimali
SKU
620405
Units
Each
Add to Wishlist
$ 141 90
Out of Stock
Direct Drive Gear Pump V24 DC 18W 3400 RPM
Direct Drive Gear Pump V24 DC 18W 3400 RPM
to fit Carimali
SKU
620419
Units
Each
Add to Wishlist
$ 306 90
Out of Stock
Boiler Safety Valve G. 3/8M H. 48mm
Boiler Safety Valve G. 3/8M H. 48mm
to fit Carimali
SKU
700217
Units
Each
Add to Wishlist
$ 36 19
In Stock Ready for Dispatch
Boiler Safety Valve M19 Thread 1.8 Bar H. 49mm
Boiler Safety Valve M19 Thread 1.8 Bar H. 49mm
to fit Carimali
SKU
700268
Units
Each
Add to Wishlist
$ 54 89
Out of Stock
Gicar Electronic Autofill Box RL30/1E-2C/F 220V (9.1.40.71G)
Gicar Electronic Autofill Box RL30/1E-2C/F 220V (9.1.40.71G)
to fit Carimali
SKU
700737
Units
Each
Add to Wishlist
$ 229 90
Out of Stock
Boiler Anti-vacuum Valve G. 1/4" with Viton Sealing
Boiler Anti-vacuum Valve G. 1/4" with Viton Sealing
to fit Carimali
SKU
700750
Units
Each
Add to Wishlist
$ 35 09
Out of Stock
Touch Pad 2 Buttons with 2 LED 6 Pin
Touch Pad 2 Buttons with 2 LED 6 Pin
to fit Carimali
SKU
703803
Units
Each
Add to Wishlist
$ 159 50
Out of Stock
Heat Exchange Injector Pipe Ø 8×113mm
Heat Exchange Injector Pipe Ø 8×113mm
to fit Carimali
SKU
703850
Units
Each
Add to Wishlist
$ 21 34
In Stock Ready for Dispatch
Injector Pipe Ø 8mm L. 40mm
Injector Pipe Ø 8mm L. 40mm
to fit Carimali
SKU
703851
Units
Each
Add to Wishlist
$ 21 34
In Stock Ready for Dispatch
Inlet Pipe Ø 8mm L. 50mm
Inlet Pipe Ø 8mm L. 50mm
to fit Carimali
SKU
703852
Units
Each
Add to Wishlist
$ 16 39
In Stock Ready for Dispatch
Boiler Gasket 10 Holes Ø 230×175×3mm
Boiler Gasket 10 Holes Ø 230×175×3mm
to fit Carimali
SKU
703854
Units
Each
Add to Wishlist
$ 59 29
In Stock Ready for Dispatch
Bipolar Pressure Switch XP200A 0.5-1.5 Bar 1/4" M
Bipolar Pressure Switch XP200A 0.5-1.5 Bar 1/4" M
to fit Carimali
SKU
703855
Units
Each
Add to Wishlist
$ 86 90
Out of Stock
Touch Pad 5 Buttons with 5 LED and 6 Pin (Carimali 04.05122)
Touch Pad 5 Buttons with 5 LED and 6 Pin (Carimali 04.05122)
to fit Carimali
SKU
703857
Units
Each
Add to Wishlist
$ 251 90
In Stock Ready for Dispatch
Hot Water Inlet Touch Pad Board (95.01288)
Hot Water Inlet Touch Pad Board (95.01288)
to fit Carimali
SKU
703872
Units
Each
Add to Wishlist
$ 319
Out of Stock
Boiler Teflon Gasket Ø 142×128×3mm
Boiler Teflon Gasket Ø 142×128×3mm
to fit Carimali
SKU
400821-t
Units
Each
Add to Wishlist
$ 42 02
In Stock Ready for Dispatch
Heating Element Teflon Gasket G. 1" 1/4" - Ø 54×42×3mm
Heating Element Teflon Gasket G. 1" 1/4" - Ø 54×42×3mm
to fit Carimali
SKU
400826-t
Units
Each
Add to Wishlist
$ 9 30
In Stock Ready for Dispatch
Self-certified Safety Boiler Valve G. 3/8" M 1.8 Bar H. 60mm CE Approved
Self-certified Safety Boiler Valve G. 3/8" M 1.8 Bar H. 60mm CE Approved
to fit Carimali
SKU
615624-a
Units
Each
Add to Wishlist
$ 63 69
In Stock Ready for Dispatch
Solenoid Valve Small Connector Assembly 28×20×29mm
Solenoid Valve Small Connector Assembly 28×20×29mm
to fit Carimali
SKU
615978-p
Units
Each
Add to Wishlist
$ 8 69
Out of Stock
Flowmeter Connector Assembly 15.5×15.5×25.5mm
Flowmeter Connector Assembly 15.5×15.5×25.5mm
to fit Carimali
SKU
615978-t
Units
Each
Add to Wishlist
$ 8 69
Out of Stock
Gicar Flowmeter Rotor (6.9.23.05G)
Gicar Flowmeter Rotor (6.9.23.05G)
to fit Carimali
SKU
617903-g
Units
Each
Add to Wishlist
$ 39 49
Out of Stock
2-way MnM solenoid valve 1/8-1/8 inch bsp 110v (complete)
2-way MnM solenoid valve 1/8-1/8 inch bsp 110v (complete)
to fit Carimali
SKU
700253-11
Units
Each
Add to Wishlist
$ 114 40
Out of Stock
2-way MnM solenoid valve 1/8-1/8 inch bsp 220v (complete)
2-way MnM solenoid valve 1/8-1/8 inch bsp 220v (complete)
to fit Carimali
SKU
700253-22
Units
Each
Add to Wishlist
$ 92 29
Out of Stock
Relay Lovato Coil 9W 230VAC 50/60Hz BG0910
Relay Lovato Coil 9W 230VAC 50/60Hz BG0910
to fit Carimali
SKU
700653-22
Units
Each
Add to Wishlist
$ 130 90
Out of Stock
Level Regulator Gicar RL30/1E-2C/F 110V (9.1.40.70G)
Level Regulator Gicar RL30/1E-2C/F 110V (9.1.40.70G)
to fit Carimali
SKU
700737-11
Units
Each
Add to Wishlist
$ 119 90
Out of Stock
Contactor 5 Contacts AB K09D10 110/120V 50/60Hz 15A
Contactor 5 Contacts AB K09D10 110/120V 50/60Hz 15A
to fit Carimali
SKU
703856-11
Units
Each
Add to Wishlist
$ 152 90
Out of Stock
