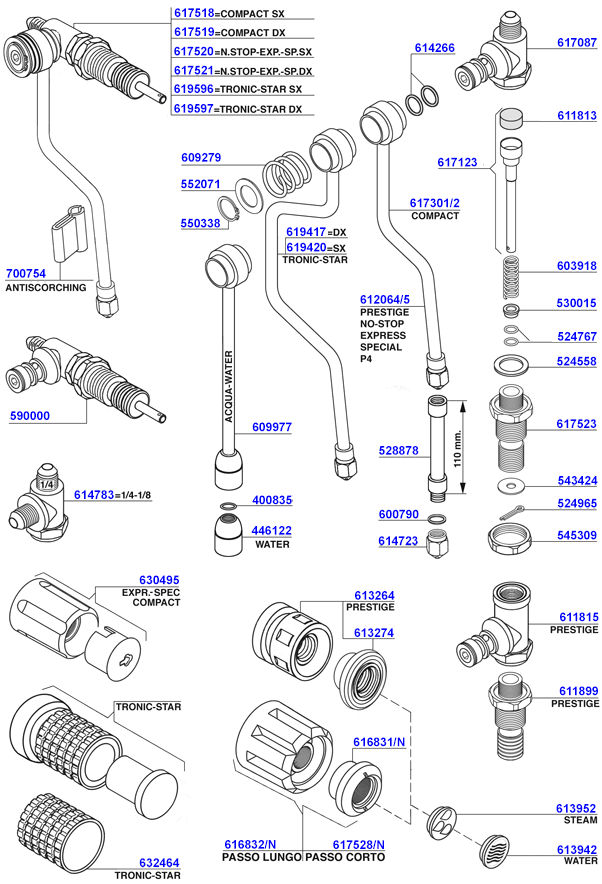

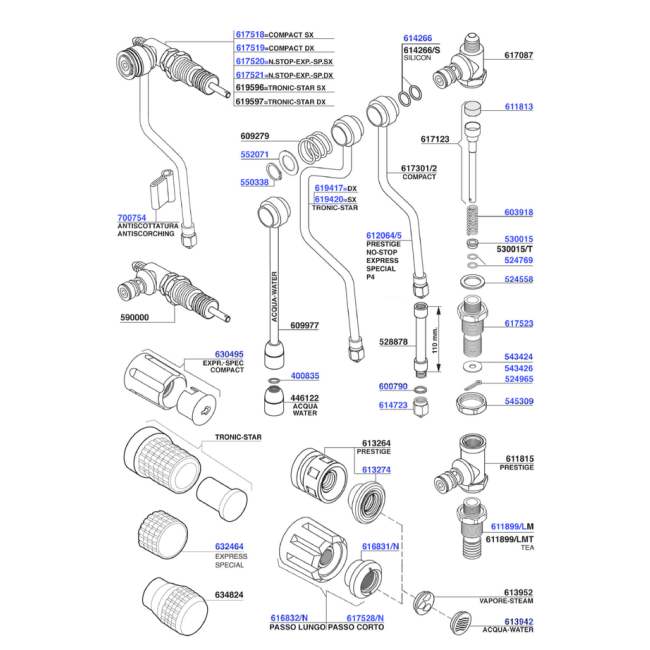

Faema - Steam and hot water valves PARTS TO FIT FAEMA COFFEE MACHINES

Faema - Steam and hot water valves 617518 617519 617520 617521 614266 611813 552071 550338 619417 619420 700754 603918 530015 524558 612064/5 400835 600790 614723 617523 543424 524965 545309 613274 616831/N 616832/N 617528/N 613942 630495 632464 524769 543426 611899/LM

Select Parts from the Diagram or List Below

Viton O-ring 02031 Ø 11.21×7.65×1.78mm
Viton O-ring 02031 Ø 11.21×7.65×1.78mm
to fit Faema
SKU
400835
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Water Tube Nozzle M10×1
Water Tube Nozzle M10×1
to fit Faema
SKU
446122
Units
Each
Add to Wishlist
$ 49 50
In Stock Ready for Dispatch
"Copper En" Flat Gasket Ø 22×16×2.5mm
"Copper En" Flat Gasket Ø 22×16×2.5mm
to fit Faema
SKU
524558
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Green Viton O-ring R5 Ø 5.70×1.90mm
Green Viton O-ring R5 Ø 5.70×1.90mm
to fit Faema
SKU
524767
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Stainless Steel Cotter Pin Ø 2×12mm Uni 1336
Stainless Steel Cotter Pin Ø 2×12mm Uni 1336
to fit Faema
SKU
524965
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Chromed Steam Pipe Extension Ø 8mm – L.110mm
Chromed Steam Pipe Extension Ø 8mm – L.110mm
to fit Faema
SKU
528878
Units
Each
Add to Wishlist
$ 31 79
Out of Stock Get notified when it arrives
Water/Steam Valve Sleeve Ø 6×9mm Brass
Water/Steam Valve Sleeve Ø 6×9mm Brass
to fit Faema
SKU
530015
Units
Each
Add to Wishlist
$ 6
In Stock Ready for Dispatch
Steam/Water Valve Socket Ø 6×9mm – Tea Treatment
Steam/Water Valve Socket Ø 6×9mm – Tea Treatment
to fit Faema
SKU
530015-t
Units
Each
Add to Wishlist
$ 4 90
Out of Stock Get notified when it arrives
Zinc-plated Flat Washer Ø 18×6.5×1.5mm
Zinc-plated Flat Washer Ø 18×6.5×1.5mm
to fit Faema
SKU
543424
Units
Each
Add to Wishlist
$ 3 80
In Stock Ready for Dispatch
Brass Valve Washer 21×6.1×1.5mm
Brass Valve Washer 21×6.1×1.5mm
to fit Faema
SKU
543426
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Brass Ferrule G. 1/2" — H. 7mm — HEX.25mm
Brass Ferrule G. 1/2" — H. 7mm — HEX.25mm
to fit Faema
SKU
545309
Units
Each
Add to Wishlist
$ 6
In Stock Ready for Dispatch
Stainless Steel Seeger Ring A16 Ø 14.5mm
Stainless Steel Seeger Ring A16 Ø 14.5mm
to fit Faema
SKU
550338
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Brass Flat Washer for Water/Steam Tap Ø 26×16.6×1mm
Brass Flat Washer for Water/Steam Tap Ø 26×16.6×1mm
to fit Faema
SKU
552071
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Water/Steam Tap Assembly Fitting With Thread 2mm — Connection 1/4" Folder
Water/Steam Tap Assembly Fitting With Thread 2mm — Connection 1/4" Folder
to fit Faema
SKU
590000
Units
Each
Add to Wishlist
$ 108 90
Out of Stock Get notified when it arrives
Teflon Gasket Ø 12.5×10×1.1mm
Teflon Gasket Ø 12.5×10×1.1mm
to fit Faema
SKU
600790
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Water/Steam Tap Shaft Spring Ø 10.4×7.7×33.9mm
Water/Steam Tap Shaft Spring Ø 10.4×7.7×33.9mm
to fit Faema
SKU
603918
Units
Each
Add to Wishlist
$ 10 40
In Stock Ready for Dispatch
Junction Spring for Steam/Water Valve Ø 25×21×18mm
Junction Spring for Steam/Water Valve Ø 25×21×18mm
to fit Faema
SKU
609279
Units
Each
Add to Wishlist
$ 9 30
Out of Stock Get notified when it arrives
Water Wand E97
Water Wand E97
to fit Faema
SKU
609977
Units
Each
Add to Wishlist
$ 65 89
In Stock Ready for Dispatch
Viton Blind Gasket 70SH Stem Valve Ø 12.5×5.5mm
Viton Blind Gasket 70SH Stem Valve Ø 12.5×5.5mm
to fit Faema
SKU
611813
Units
Each
Add to Wishlist
$ 3 80
In Stock Ready for Dispatch
Water/Steam Valve Body with Ø 1/4" Connection and Ø 3/8"–1/4" Reduction Fitting
Water/Steam Valve Body with Ø 1/4" Connection and Ø 3/8"–1/4" Reduction Fitting
to fit Faema
SKU
611815
Units
Each
Add to Wishlist
$ 39 49
Out of Stock Get notified when it arrives
Three Thread Tap Pin – Faema Thread Pitch 4mm, Hex 26mm, Height 7mm
Three Thread Tap Pin – Faema Thread Pitch 4mm, Hex 26mm, Height 7mm
to fit Faema
SKU
611899
Units
Each
Add to Wishlist
$ 35 75
Out of Stock Get notified when it arrives
Brass Pin for Faema/La Marzocco Valve – 3 Thread, Pitch 4mm, Hexagon 26mm, Height 16mm
Brass Pin for Faema/La Marzocco Valve – 3 Thread, Pitch 4mm, Hexagon 26mm, Height 16mm
to fit Faema
SKU
611899-lm
Units
Each
Add to Wishlist
$ 35 64
In Stock Ready for Dispatch
Valve Pin - 3 Threads Pitch 4mm Hexagon 26mm
Valve Pin - 3 Threads Pitch 4mm Hexagon 26mm
to fit Faema
SKU
611899-lmt
Units
Each
Add to Wishlist
$ 11 99
Out of Stock Get notified when it arrives
Outlet Group Plug 36mm
Outlet Group Plug 36mm
to fit Faema
SKU
612064-5
Units
Each
Add to Wishlist
$ 54 89
In Stock Ready for Dispatch
Water/Steam Tap with Brown Knob – Thread 4mm
Water/Steam Tap with Brown Knob – Thread 4mm
to fit Faema
SKU
613264
Units
Each
Add to Wishlist
$ 36 19
Out of Stock Get notified when it arrives
Water/Steam Valve Brown Knob Cap
Water/Steam Valve Brown Knob Cap
to fit Faema
SKU
613274
Units
Each
Add to Wishlist
$ 15 29
In Stock Ready for Dispatch
Water Valve White Knob Cap
Water Valve White Knob Cap
to fit Faema
SKU
613942
Units
Each
Add to Wishlist
$ 10 40
In Stock Ready for Dispatch
White Insert for Steam Handwheel
White Insert for Steam Handwheel
to fit Faema
SKU
613952
Units
Each
Add to Wishlist
$ 10 40
Out of Stock Get notified when it arrives
Viton O-ring R9 Ø 15.9×10.5×2.7mm
Viton O-ring R9 Ø 15.9×10.5×2.7mm
to fit Faema
SKU
614266
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Silicone O-ring Gasket R9 Ø 10.50×2.70mm
Silicone O-ring Gasket R9 Ø 10.50×2.70mm
to fit Faema
SKU
614266-s
Units
Each
Add to Wishlist
$ 4 90
Out of Stock Get notified when it arrives
Chromed Female Steam Nozzle M10×1 Ø 12×16mm 4 Holes Ø 1.6mm
Chromed Female Steam Nozzle M10×1 Ø 12×16mm 4 Holes Ø 1.6mm
to fit Faema
SKU
614723
Units
Each
Add to Wishlist
$ 18 65
In Stock Ready for Dispatch
Steam valve body
Steam valve body
to fit Faema
SKU
614783
Units
Each
Add to Wishlist
$ 33 06
In Stock Ready for Dispatch
Knob Cap No Stop
Knob Cap No Stop
to fit Faema
SKU
616831-n
Units
Each
Add to Wishlist
$ 18 59
In Stock Ready for Dispatch
Water/Steam Tap Knob – Thread 4mm
Water/Steam Tap Knob – Thread 4mm
to fit Faema
SKU
616832-n
Units
Each
Add to Wishlist
$ 36 19
In Stock Ready for Dispatch
Water/Steam Valve Body with Ø 1/4" Connection and Ø 3/8"–1/4" Reduction Fitting
Water/Steam Valve Body with Ø 1/4" Connection and Ø 3/8"–1/4" Reduction Fitting
to fit Faema
SKU
617087
Units
Each
Add to Wishlist
$ 52 69
Out of Stock Get notified when it arrives
Complete Water/Steam Valve Stem
Complete Water/Steam Valve Stem
to fit Faema
SKU
617123
Units
Each
Add to Wishlist
$ 25 41
Out of Stock Get notified when it arrives
Chromed Steam Pipe Ø 8mm with Joint Connection Ø 16mm L. 220mm
Chromed Steam Pipe Ø 8mm with Joint Connection Ø 16mm L. 220mm
to fit Faema
SKU
617301-2
Units
Each
Add to Wishlist
$ 54 89
Out of Stock Get notified when it arrives
LH Valve Assembly With Steam Pipe - Faema
LH Valve Assembly With Steam Pipe - Faema
to fit Faema
SKU
617518
Units
Each
Add to Wishlist
$ 141 90
In Stock Ready for Dispatch
Steam Valve With Right-Hand Steam Wand Compact
Steam Valve With Right-Hand Steam Wand Compact
to fit Faema
SKU
617519
Units
Each
Add to Wishlist
$ 141 90
In Stock Ready for Dispatch
Steam valve complete with left hand pipe no stop
Steam valve complete with left hand pipe no stop
to fit Faema
SKU
617520
Units
Each
Add to Wishlist
$ 152 90
In Stock Ready for Dispatch
Steam valve with right hand pipe no stop
Steam valve with right hand pipe no stop
to fit Faema
SKU
617521
Units
Each
Add to Wishlist
$ 141 90
In Stock Ready for Dispatch
Brass Valve Pin – 3 Threads – Pitch 2mm – HEX.26mm
Brass Valve Pin – 3 Threads – Pitch 2mm – HEX.26mm
to fit Faema
SKU
617523
Units
Each
Add to Wishlist
$ 38 72
In Stock Ready for Dispatch
Water/Steam Tap Knob Thread 2mm
Water/Steam Tap Knob Thread 2mm
to fit Faema
SKU
617528-n
Units
Each
Add to Wishlist
$ 36 19
In Stock Ready for Dispatch
Steam Wand with Right-handed Eyelet Connection
Steam Wand with Right-handed Eyelet Connection
to fit Faema
SKU
619417
Units
Each
Add to Wishlist
$ 54 89
In Stock Ready for Dispatch
Chromed Left Steam Pipe Ø 8mm – Joint Connection Ø 16mm – L. 245mm
Chromed Left Steam Pipe Ø 8mm – Joint Connection Ø 16mm – L. 245mm
to fit Faema
SKU
619420
Units
Each
Add to Wishlist
$ 54 89
In Stock Ready for Dispatch
LH Valve Assembly With Steam Pipe — Faema
LH Valve Assembly With Steam Pipe — Faema
to fit Faema
SKU
619596
Units
Each
Add to Wishlist
$ 141 90
Out of Stock Get notified when it arrives
Steam Valve With RH Pipe Tronic
Steam Valve With RH Pipe Tronic
to fit Faema
SKU
619597
Units
Each
Add to Wishlist
$ 141 90
Out of Stock Get notified when it arrives
Steam Valve Black Knob Ø 40mm
Steam Valve Black Knob Ø 40mm
to fit Faema
SKU
630495
Units
Each
Add to Wishlist
$ 28 71
In Stock Ready for Dispatch
Water/Steam Knob Cover Ø 38×25mm
Water/Steam Knob Cover Ø 38×25mm
to fit Faema
SKU
632464
Units
Each
Add to Wishlist
$ 8 86
In Stock Ready for Dispatch
Steam Valve Knob with Pin Hole Ø 6×8mm
Steam Valve Knob with Pin Hole Ø 6×8mm
to fit Faema
SKU
634824
Units
Each
Add to Wishlist
$ 31 79
Out of Stock Get notified when it arrives
Anti-scorching Clip for Steam Wand Ø 8mm
Anti-scorching Clip for Steam Wand Ø 8mm
to fit Faema
SKU
700754
Units
Each
Add to Wishlist
$ 9 30
In Stock Ready for Dispatch

No parts found matching "". Contact our parts team with your machine serial number and we will help identify the part you need.

SKU faema-spare-parts-9
Steam and hot water valves
Brand Faema
Item Returns This item can be returned
Parts to Fit

Diagrams

  1. Faema - Group head e98/1a/2a
  2. Faema - Group head e61 lever operated
  3. Faema - Group head nostop/compact
  4. Faema - Group head p4/p6/e64/e66
  5. Faema - Lever group head
  6. Faema - Group head p4/p6/e64/e66
  7. Faema - Portafilters and filter baskets
  8. Faema - e61 and faemina miscellaneous parts
  9. Faema - Steam and hot water valves
  10. Faema - e91/e98/due steam and hot water valves
  11. Faema - e98 steam and hot water valves
  12. Faema - e61 steam and hot water valves
  13. Faema - Water inlet valves 1
  14. Faema - Water inlet valves 2
  15. Faema - water inlet valves and drip trays
  16. Faema - Water inlet valves 3
  17. Faema - Sight glasses
  18. Faema - Miscellaneous
  19. Faema - Switches
  20. Faema - Gauges
  21. Faema - Touch pads and control boards
  22. Faema - Expansion valve and drains
  23. Faema - p6/e66 group heads
  24. Faema - p6/e66 group heads
  25. Faema - Water levels
  26. Faema - Water inlet
  27. Faema - Boiler components and water inlets
  28. Faema - Boiler components and e61 boilers
  29. Faema - Elements and thermostats
  30. Faema - Motors and pumps
  31. Faema - Hopper and doser parts
  32. Faema - Miscellaneous electronic parts
  33. Faema - Motors and rotary pumps

Spare Parts Reviews

Same Day Dispatch Order before 2pm AEST

You may also like...

Faema - Group head e98/1a/2a
$ 2 70
Faema - Group head e98/1a/2a
faema-spare-parts-1
Out of Stock
Faema - Motors and rotary pumps
$ 10 89
Faema - Motors and rotary pumps
faema-spare-parts-pumps
Out of Stock
Faema - Group head e61 lever operated
$ 2 70
Faema - Group head e61 lever operated
faema-spare-parts-2
Out of Stock
Faema - Group head nostop/compact
$ 2 70
Faema - Group head nostop/compact
faema-spare-parts-3
Out of Stock
Faema - Group head p4/p6/e64/e66
$ 2 70
Faema - Group head p4/p6/e64/e66
faema-spare-parts-4
Out of Stock

Also found in the following categories
