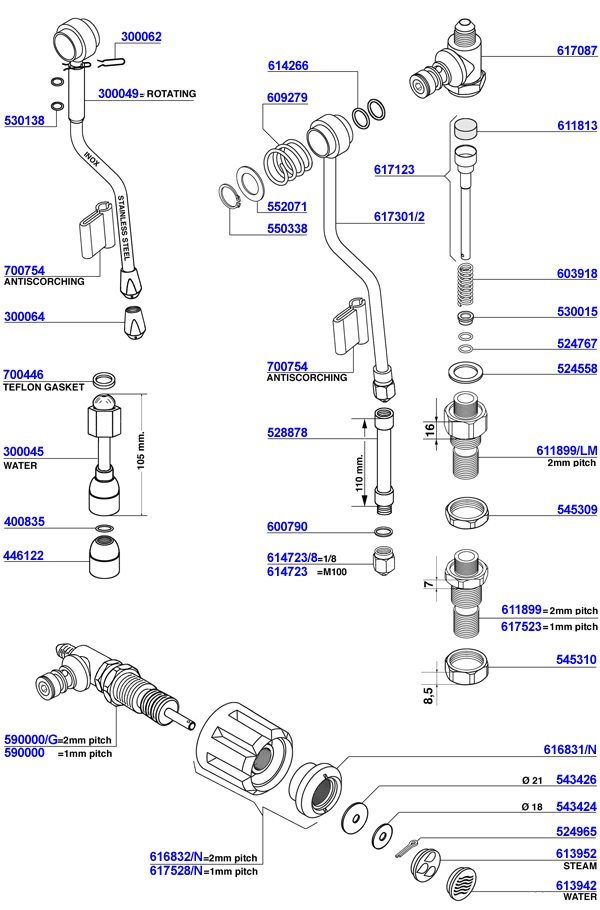

La Marzocco - Traditional steam valve PARTS TO FIT LA MARZOCCO COFFEE MACHINES

La Marzocco - Traditional steam valve 617528-n-black-knob-no-stop-1mm-pitch616832-n-black-knob-cap-2mm-pitch613942-water-symbol-cap524965-cotter-pin543424-washer-6x18mm543426-washer616831-n-black-knob-top-section614723-4-hole-steam-tip614723-8-steam-nozzle-1-8-inch-bsp-thread545309-lock-nut-1-2-inch-bsp617523-steam-valve-complete-fitting-1mm-pitch545309-lock-nut-1-2-inch-bsp611899-lm-steam-valve-fitting524558-copper-gasket524767-viton-o-ring-r5530015-steam-valve-sleeve603918-steam-valve-spring600790-washer550338-c-clamp-a1552071-washer614266-o-ring400835-viton-o-ring700446-teflon-gasket300064-steam-nozzle530138-o-ring300062-cotter-pin-steam-pipe

Select Parts from the Diagram or List Below

Chromed Hot Water Pipe Ø 8mm with 3/8F Nut and Diffuser Head L. 105mm
Chromed Hot Water Pipe Ø 8mm with 3/8F Nut and Diffuser Head L. 105mm
to fit La Marzocco
SKU
300045
Units
Each
Add to Wishlist
$ 54 89
Out of Stock Get notified when it arrives
Stainless Steel Steam Pipe Ø 10mm with Joint Connection Ø 16mm, L. 220mm
Stainless Steel Steam Pipe Ø 10mm with Joint Connection Ø 16mm, L. 220mm
to fit La Marzocco
SKU
300049
Units
Each
Add to Wishlist
$ 156 04
Out of Stock Get notified when it arrives
Cotter pin steam pipe
Cotter pin steam pipe
to fit La Marzocco
SKU
300062
Units
Each
Add to Wishlist
$ 27 83
In Stock Ready for Dispatch
Steam Wand Nozzle
Steam Wand Nozzle
to fit La Marzocco
SKU
300064
Units
Each
Add to Wishlist
$ 28 77
In Stock Ready for Dispatch
Viton O-ring 02031 Ø 11.21×7.65×1.78mm
Viton O-ring 02031 Ø 11.21×7.65×1.78mm
to fit La Marzocco
SKU
400835
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Water Tube Nozzle M10×1
Water Tube Nozzle M10×1
to fit La Marzocco
SKU
446122
Units
Each
Add to Wishlist
$ 49 50
In Stock Ready for Dispatch
"Copper En" Flat Gasket Ø 22×16×2.5mm
"Copper En" Flat Gasket Ø 22×16×2.5mm
to fit La Marzocco
SKU
524558
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Green Viton O-ring R5 Ø 5.70×1.90mm
Green Viton O-ring R5 Ø 5.70×1.90mm
to fit La Marzocco
SKU
524767
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Stainless Steel Cotter Pin Ø 2×12mm Uni 1336
Stainless Steel Cotter Pin Ø 2×12mm Uni 1336
to fit La Marzocco
SKU
524965
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Chromed Steam Pipe Extension Ø 8mm – L.110mm
Chromed Steam Pipe Extension Ø 8mm – L.110mm
to fit La Marzocco
SKU
528878
Units
Each
Add to Wishlist
$ 31 79
Out of Stock Get notified when it arrives
Water/Steam Valve Sleeve Ø 6×9mm Brass
Water/Steam Valve Sleeve Ø 6×9mm Brass
to fit La Marzocco
SKU
530015
Units
Each
Add to Wishlist
$ 6
In Stock Ready for Dispatch
EPDM O-ring 0106 Ø 6.75×1.78mm
EPDM O-ring 0106 Ø 6.75×1.78mm
to fit La Marzocco
SKU
530138
Units
Each
Add to Wishlist
$ 16 99
In Stock Ready for Dispatch
Zinc-plated Flat Washer Ø 18×6.5×1.5mm
Zinc-plated Flat Washer Ø 18×6.5×1.5mm
to fit La Marzocco
SKU
543424
Units
Each
Add to Wishlist
$ 3 80
In Stock Ready for Dispatch
Brass Valve Washer 21×6.1×1.5mm
Brass Valve Washer 21×6.1×1.5mm
to fit La Marzocco
SKU
543426
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Brass Ferrule G. 1/2" — H. 7mm — HEX.25mm
Brass Ferrule G. 1/2" — H. 7mm — HEX.25mm
to fit La Marzocco
SKU
545309
Units
Each
Add to Wishlist
$ 6
In Stock Ready for Dispatch
Stainless Steel Seeger Ring A16 Ø 14.5mm
Stainless Steel Seeger Ring A16 Ø 14.5mm
to fit La Marzocco
SKU
550338
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Brass Flat Washer for Water/Steam Tap Ø 26×16.6×1mm
Brass Flat Washer for Water/Steam Tap Ø 26×16.6×1mm
to fit La Marzocco
SKU
552071
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Water/Steam Tap Assembly Fitting With Thread 2mm — Connection 1/4" Folder
Water/Steam Tap Assembly Fitting With Thread 2mm — Connection 1/4" Folder
to fit La Marzocco
SKU
590000
Units
Each
Add to Wishlist
$ 108 90
Out of Stock Get notified when it arrives
Water/Steam Valve with Thread Connection 4mm
Water/Steam Valve with Thread Connection 4mm
to fit La Marzocco
SKU
590000-g
Units
Each
Add to Wishlist
$ 108 90
Out of Stock Get notified when it arrives
Teflon Gasket Ø 12.5×10×1.1mm
Teflon Gasket Ø 12.5×10×1.1mm
to fit La Marzocco
SKU
600790
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Water/Steam Tap Shaft Spring Ø 10.4×7.7×33.9mm
Water/Steam Tap Shaft Spring Ø 10.4×7.7×33.9mm
to fit La Marzocco
SKU
603918
Units
Each
Add to Wishlist
$ 10 40
In Stock Ready for Dispatch
Junction Spring for Steam/Water Valve Ø 25×21×18mm
Junction Spring for Steam/Water Valve Ø 25×21×18mm
to fit La Marzocco
SKU
609279
Units
Each
Add to Wishlist
$ 9 30
Out of Stock Get notified when it arrives
Viton Blind Gasket 70SH Stem Valve Ø 12.5×5.5mm
Viton Blind Gasket 70SH Stem Valve Ø 12.5×5.5mm
to fit La Marzocco
SKU
611813
Units
Each
Add to Wishlist
$ 3 80
In Stock Ready for Dispatch
Three Thread Tap Pin – Faema Thread Pitch 4mm, Hex 26mm, Height 7mm
Three Thread Tap Pin – Faema Thread Pitch 4mm, Hex 26mm, Height 7mm
to fit La Marzocco
SKU
611899
Units
Each
Add to Wishlist
$ 35 75
Out of Stock Get notified when it arrives
Brass Pin for Faema/La Marzocco Valve – 3 Thread, Pitch 4mm, Hexagon 26mm, Height 16mm
Brass Pin for Faema/La Marzocco Valve – 3 Thread, Pitch 4mm, Hexagon 26mm, Height 16mm
to fit La Marzocco
SKU
611899-lm
Units
Each
Add to Wishlist
$ 35 64
In Stock Ready for Dispatch
Water Valve White Knob Cap
Water Valve White Knob Cap
to fit La Marzocco
SKU
613942
Units
Each
Add to Wishlist
$ 10 40
In Stock Ready for Dispatch
White Insert for Steam Handwheel
White Insert for Steam Handwheel
to fit La Marzocco
SKU
613952
Units
Each
Add to Wishlist
$ 10 40
Out of Stock Get notified when it arrives
Viton O-ring R9 Ø 15.9×10.5×2.7mm
Viton O-ring R9 Ø 15.9×10.5×2.7mm
to fit La Marzocco
SKU
614266
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Chromed Female Steam Nozzle M10×1 Ø 12×16mm 4 Holes Ø 1.6mm
Chromed Female Steam Nozzle M10×1 Ø 12×16mm 4 Holes Ø 1.6mm
to fit La Marzocco
SKU
614723
Units
Each
Add to Wishlist
$ 18 65
In Stock Ready for Dispatch
"Nr Chromed" Female Steam Nozzle 1/8"F Ø 12×16mm with 4 Holes Ø 1.6mm
"Nr Chromed" Female Steam Nozzle 1/8"F Ø 12×16mm with 4 Holes Ø 1.6mm
to fit La Marzocco
SKU
614723-8
Units
Each
Add to Wishlist
$ 20 57
In Stock Ready for Dispatch
Knob Cap No Stop
Knob Cap No Stop
to fit La Marzocco
SKU
616831-n
Units
Each
Add to Wishlist
$ 18 59
In Stock Ready for Dispatch
Water/Steam Tap Knob – Thread 4mm
Water/Steam Tap Knob – Thread 4mm
to fit La Marzocco
SKU
616832-n
Units
Each
Add to Wishlist
$ 36 19
In Stock Ready for Dispatch
Water/Steam Valve Body with Ø 1/4" Connection and Ø 3/8"–1/4" Reduction Fitting
Water/Steam Valve Body with Ø 1/4" Connection and Ø 3/8"–1/4" Reduction Fitting
to fit La Marzocco
SKU
617087
Units
Each
Add to Wishlist
$ 52 69
Out of Stock Get notified when it arrives
Complete Water/Steam Valve Stem
Complete Water/Steam Valve Stem
to fit La Marzocco
SKU
617123
Units
Each
Add to Wishlist
$ 25 41
Out of Stock Get notified when it arrives
Chromed Steam Pipe Ø 8mm with Joint Connection Ø 16mm L. 220mm
Chromed Steam Pipe Ø 8mm with Joint Connection Ø 16mm L. 220mm
to fit La Marzocco
SKU
617301-2
Units
Each
Add to Wishlist
$ 54 89
Out of Stock Get notified when it arrives
Brass Valve Pin – 3 Threads – Pitch 2mm – HEX.26mm
Brass Valve Pin – 3 Threads – Pitch 2mm – HEX.26mm
to fit La Marzocco
SKU
617523
Units
Each
Add to Wishlist
$ 38 72
In Stock Ready for Dispatch
Water/Steam Tap Knob Thread 2mm
Water/Steam Tap Knob Thread 2mm
to fit La Marzocco
SKU
617528-n
Units
Each
Add to Wishlist
$ 36 19
In Stock Ready for Dispatch
PTFE Water/Steam Tap Joint Conical Sleeve Ø 14.5×7.5×4mm
PTFE Water/Steam Tap Joint Conical Sleeve Ø 14.5×7.5×4mm
to fit La Marzocco
SKU
700446
Units
Each
Add to Wishlist
$ 6
In Stock Ready for Dispatch
Anti-scorching Clip for Steam Wand Ø 8mm
Anti-scorching Clip for Steam Wand Ø 8mm
to fit La Marzocco
SKU
700754
Units
Each
Add to Wishlist
$ 9 30
In Stock Ready for Dispatch

No parts found matching "". Contact our parts team with your machine serial number and we will help identify the part you need.

SKU la-marzocco-spare-parts-2
Traditional steam valve
Brand La Marzocco
Item Returns This item can be returned
Parts to Fit

Diagrams

  1. Group head solenoid operated and portafilters
  2. Traditional steam valve
  3. Touch pads, switches and control boards
  4. Elements and boiler components
  5. Motors and rotary pumps
  6. GS3 Portafilters
  7. FB70 - Boiler Hot Water Valve Assembly
  8. FB70 - Coffee Boiler Assembly
  9. FB70 - Coffee Boiler Head MP
  10. FB70 - Control Panel Assembly
  11. FB70 - Hydraulic Assembly
  12. FB70 - Pumps & Motors
  13. FB70 - Retrofit MP Paddle Kit
  14. FB70 - Steam Arm Assembly
  15. FB70 - Steam Boiler Assembly
  16. FB70 - Boiler Group Head
