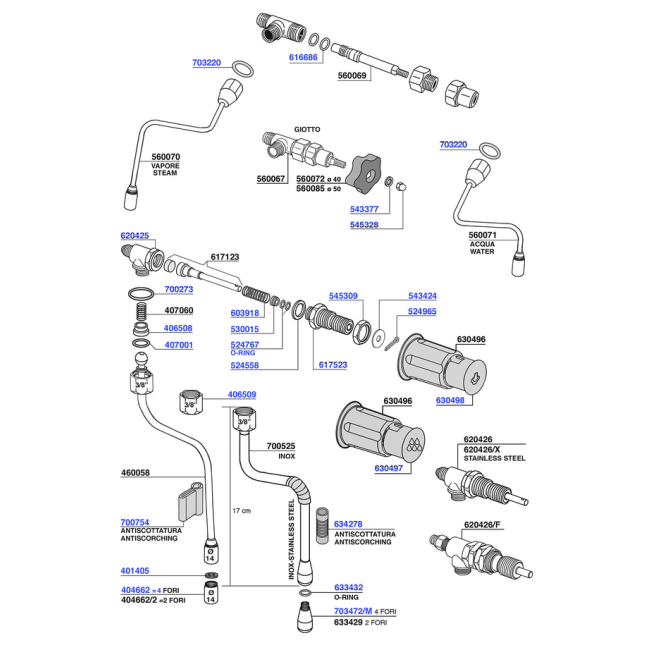

ECM - Steam and hot water valves 1 PARTS TO FIT ECM COFFEE MACHINES

ECM - Steam and hot water valves 1 703220 616686 703220 543377 545328 620425 700273 406508 407001 603918 545309 543424 524965 630498 630497 530015 524767 524558 617523 406509 700754 401405 404662 634278 633432 703472/M

Select Parts from the Diagram or List Below

Flat PTFE Gasket Ø 12×10×1mm
Flat PTFE Gasket Ø 12×10×1mm
to fit ECM
SKU
401405
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Chromed Female Steam Nozzle 1/8F Ø 13×16mm 4 Holes Ø 1.7mm
Chromed Female Steam Nozzle 1/8F Ø 13×16mm 4 Holes Ø 1.7mm
to fit ECM
SKU
404662
Units
Each
Add to Wishlist
$ 20 79
In Stock Ready for Dispatch
Steam Nozzle 1/8"F Ø 13×16mm 2 Holes Ø 1.7mm
Steam Nozzle 1/8"F Ø 13×16mm 2 Holes Ø 1.7mm
to fit ECM
SKU
404662-2
Units
Each
Add to Wishlist
$ 16 39
Out of Stock Get notified when it arrives
Water/Steam Tap Joint Spring Guide Brass Bushing Ø 12/9×7×5mm
Water/Steam Tap Joint Spring Guide Brass Bushing Ø 12/9×7×5mm
to fit ECM
SKU
406508
Units
Each
Add to Wishlist
$ 11 99
In Stock Ready for Dispatch
Chromed Nut G. 3/8F Water/Steam Pipe – Hex. 22mm, H. 21mm
Chromed Nut G. 3/8F Water/Steam Pipe – Hex. 22mm, H. 21mm
to fit ECM
SKU
406509
Units
Each
Add to Wishlist
$ 15 29
In Stock Ready for Dispatch
Water/Steam Tap Jointnut O-ring R10 EPDM Ø 12.10×2.70mm
Water/Steam Tap Jointnut O-ring R10 EPDM Ø 12.10×2.70mm
to fit ECM
SKU
407001
Units
Each
Add to Wishlist
$ 7 10
In Stock Ready for Dispatch
Water/Steam Tap Joint Spring Ø 12×9×15.5mm
Water/Steam Tap Joint Spring Ø 12×9×15.5mm
to fit ECM
SKU
407060
Units
Each
Add to Wishlist
$ 8 20
In Stock Ready for Dispatch
Chromed Articulated Steam Wand Ø 8mm with 3/8F Nut – 170mm
Chromed Articulated Steam Wand Ø 8mm with 3/8F Nut – 170mm
to fit ECM
SKU
460058
Units
Each
Add to Wishlist
$ 54 89
Out of Stock Get notified when it arrives
"Copper En" Flat Gasket Ø 22×16×2.5mm
"Copper En" Flat Gasket Ø 22×16×2.5mm
to fit ECM
SKU
524558
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Green Viton O-ring R5 Ø 5.70×1.90mm
Green Viton O-ring R5 Ø 5.70×1.90mm
to fit ECM
SKU
524767
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Stainless Steel Cotter Pin Ø 2×12mm Uni 1336
Stainless Steel Cotter Pin Ø 2×12mm Uni 1336
to fit ECM
SKU
524965
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Water/Steam Valve Sleeve Ø 6×9mm Brass
Water/Steam Valve Sleeve Ø 6×9mm Brass
to fit ECM
SKU
530015
Units
Each
Add to Wishlist
$ 6
In Stock Ready for Dispatch
Stainless Steel Flat Washer M6 Ø 12×6.4×1.5mm
Stainless Steel Flat Washer M6 Ø 12×6.4×1.5mm
to fit ECM
SKU
543377
Units
Each
Add to Wishlist
$ 3 80
In Stock Ready for Dispatch
Zinc-plated Flat Washer Ø 18×6.5×1.5mm
Zinc-plated Flat Washer Ø 18×6.5×1.5mm
to fit ECM
SKU
543424
Units
Each
Add to Wishlist
$ 3 80
In Stock Ready for Dispatch
Brass Ferrule G. 1/2" — H. 7mm — HEX.25mm
Brass Ferrule G. 1/2" — H. 7mm — HEX.25mm
to fit ECM
SKU
545309
Units
Each
Add to Wishlist
$ 6
In Stock Ready for Dispatch
Chromed Blind Hexagonal Nut M6 Hex. 10mm H. 12mm
Chromed Blind Hexagonal Nut M6 Hex. 10mm H. 12mm
to fit ECM
SKU
545328
Units
Each
Add to Wishlist
$ 7 10
In Stock Ready for Dispatch
Steam/Water Valve Assembly 1/4"×1/4" for ECM Giotto
Steam/Water Valve Assembly 1/4"×1/4" for ECM Giotto
to fit ECM
SKU
560067
Units
Each
Add to Wishlist
$ 92 51
Out of Stock Get notified when it arrives
Water/Steam Tap Opening Pin M6 L. 76mm
Water/Steam Tap Opening Pin M6 L. 76mm
to fit ECM
SKU
560069
Units
Each
Add to Wishlist
$ 32 89
Out of Stock Get notified when it arrives
Chromed Steam Wand Pipe Assembly Ø 8mm 1/4" F 120mm
Chromed Steam Wand Pipe Assembly Ø 8mm 1/4" F 120mm
to fit ECM
SKU
560070
Units
Each
Add to Wishlist
$ 38 06
Out of Stock Get notified when it arrives
Chromed Water Pipe Assembly Ø 8mm with 1/4F Nut 120mm
Chromed Water Pipe Assembly Ø 8mm with 1/4F Nut 120mm
to fit ECM
SKU
560071
Units
Each
Add to Wishlist
$ 37 73
Out of Stock Get notified when it arrives
Giotto Steam Knob Ø40mm
Giotto Steam Knob Ø40mm
to fit ECM
SKU
560072
Units
Each
Add to Wishlist
$ 29 59
Out of Stock Get notified when it arrives
Water/Steam Tap Knob Ø 50mm with 6×6mm Square Connection
Water/Steam Tap Knob Ø 50mm with 6×6mm Square Connection
to fit ECM
SKU
560085
Units
Each
Add to Wishlist
$ 24 92
Out of Stock Get notified when it arrives
Water/Steam Tap Shaft Spring Ø 10.4×7.7×33.9mm
Water/Steam Tap Shaft Spring Ø 10.4×7.7×33.9mm
to fit ECM
SKU
603918
Units
Each
Add to Wishlist
$ 10 40
In Stock Ready for Dispatch
O-ring R6 EPDM Ø 7.20×1.90mm
O-ring R6 EPDM Ø 7.20×1.90mm
to fit ECM
SKU
616686
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Complete Water/Steam Valve Stem
Complete Water/Steam Valve Stem
to fit ECM
SKU
617123
Units
Each
Add to Wishlist
$ 25 41
Out of Stock Get notified when it arrives
Brass Valve Pin – 3 Threads – Pitch 2mm – HEX.26mm
Brass Valve Pin – 3 Threads – Pitch 2mm – HEX.26mm
to fit ECM
SKU
617523
Units
Each
Add to Wishlist
$ 38 72
In Stock Ready for Dispatch
Steam/Water Valve Body with Joint Connection 3/8"M and Flare Fitting 1/4"M
Steam/Water Valve Body with Joint Connection 3/8"M and Flare Fitting 1/4"M
to fit ECM
SKU
620425
Units
Each
Add to Wishlist
$ 32 89
Out of Stock Get notified when it arrives
Steam/Water Valve Without Tube – Flare Connection 1/4" M × 3/8" M
Steam/Water Valve Without Tube – Flare Connection 1/4" M × 3/8" M
to fit ECM
SKU
620426
Units
Each
Add to Wishlist
$ 74 80
Out of Stock Get notified when it arrives
Tap Assembly Water/Steam Connection 1/4" M × 3/8" M
Tap Assembly Water/Steam Connection 1/4" M × 3/8" M
to fit ECM
SKU
620426-f
Units
Each
Add to Wishlist
$ 24 86
Out of Stock Get notified when it arrives
Stainless Steel Water/Steam Valve Without Nozzle 1/4" M × 3/8" M
Stainless Steel Water/Steam Valve Without Nozzle 1/4" M × 3/8" M
to fit ECM
SKU
620426-x
Units
Each
Add to Wishlist
$ 39 82
Out of Stock Get notified when it arrives
Steam/Water Valve Knob Thread 2mm
Steam/Water Valve Knob Thread 2mm
to fit ECM
SKU
630496
Units
Each
Add to Wishlist
$ 28 71
Out of Stock Get notified when it arrives
Chromed Water Tap Cap for Knob
Chromed Water Tap Cap for Knob
to fit ECM
SKU
630497
Units
Each
Add to Wishlist
$ 6
In Stock Ready for Dispatch
Chromed Steam Tap Cap
Chromed Steam Tap Cap
to fit ECM
SKU
630498
Units
Each
Add to Wishlist
$ 6
In Stock Ready for Dispatch
Stainless Steel Male Steam Nozzle M8.5×0.75 — 2 Holes Ø 1.5mm — Ø 10.5×27mm
Stainless Steel Male Steam Nozzle M8.5×0.75 — 2 Holes Ø 1.5mm — Ø 10.5×27mm
to fit ECM
SKU
633429
Units
Each
Add to Wishlist
$ 20 08
In Stock Ready for Dispatch
Or Gasket Stainless Steel Steam Nozzle Ø 6×1mm
Or Gasket Stainless Steel Steam Nozzle Ø 6×1mm
to fit ECM
SKU
633432
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Antiscorching Clips for Steam Pipe Ø 8mm – L. 35mm
Antiscorching Clips for Steam Pipe Ø 8mm – L. 35mm
to fit ECM
SKU
634278
Units
Each
Add to Wishlist
$ 8 20
In Stock Ready for Dispatch
EPDM O-ring 03050 Ø 15.8×2.62mm
EPDM O-ring 03050 Ø 15.8×2.62mm
to fit ECM
SKU
700273
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Stainless Steel Steam Wand Millenium 8"
Stainless Steel Steam Wand Millenium 8"
to fit ECM
SKU
700525
Units
Each
Add to Wishlist
$ 54 89
Out of Stock Get notified when it arrives
Anti-scorching Clip for Steam Wand Ø 8mm
Anti-scorching Clip for Steam Wand Ø 8mm
to fit ECM
SKU
700754
Units
Each
Add to Wishlist
$ 9 30
In Stock Ready for Dispatch
Viton O-ring 02025 Ø 6.07×1.78mm
Viton O-ring 02025 Ø 6.07×1.78mm
to fit ECM
SKU
703220
Units
Each
Add to Wishlist
$ 8 69
In Stock Ready for Dispatch
Stainless Steel Male Steam Nozzle 8.5×0.75 Thread – 4 Holes Ø 1.5mm – Ø 10×27mm
Stainless Steel Male Steam Nozzle 8.5×0.75 Thread – 4 Holes Ø 1.5mm – Ø 10×27mm
to fit ECM
SKU
703472-m
Units
Each
Add to Wishlist
$ 20 08
In Stock Ready for Dispatch

No parts found matching "". Contact our parts team with your machine serial number and we will help identify the part you need.

SKU ecm-spare-parts-5
Steam and hot water valves
Brand ECM
Item Returns This item can be returned
Parts to Fit

Diagrams

  1. ECM - Group head e61 lever operated
  2. ECM - Group head e61 solenoid operated
  3. ECM - Group head solenoid operated
  4. ECM - Portafilters and filter baskets
  5. ECM - Steam and hot water valves 1
  6. ECM - Steam and hot water valves 2
  7. ECM - Water inlet and water levels
  8. ECM - Touch pads, switches and control boards
  9. ECM - Elements, boiler components and gauges
  10. ECM - Motors and rotary pumps
