San Marino - Old model group head PARTS TO FIT SAN MARINO COFFEE MACHINES

San Marino - Old model group head 700727-t-group-flange-teflon-gasket524767-viton-o-ring-r5551934-stainless-screw-m4x10700176-solenoid-valve-body-lucifer700177-solenoid-valve-body-parker700711-group-head-o-ring700273-o-ring700706-group-jet-filter700707-group-jet700200-group-head-spacer700729-group-head-gasket-72x56x8mm700729-5-group-head-gasket-72x56x8-5mm700181-22-coil-lucifer-220-50-60v700179-22-parker-coil700764-shower-head-holder700163-shower-head547101-stainless-washer552349-stainless-screw-m5x12700301-22-solenoid-valve-lucifer-220v-50-60700152-22-solenoid-valve-parker-220v615978-solenoid-valve-plug

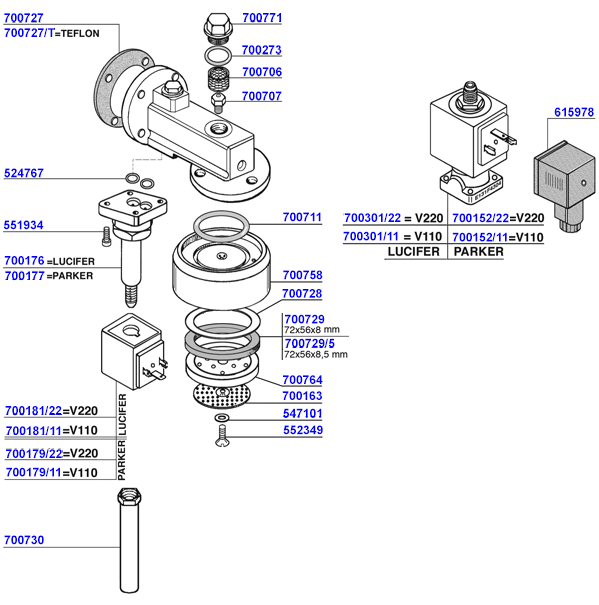

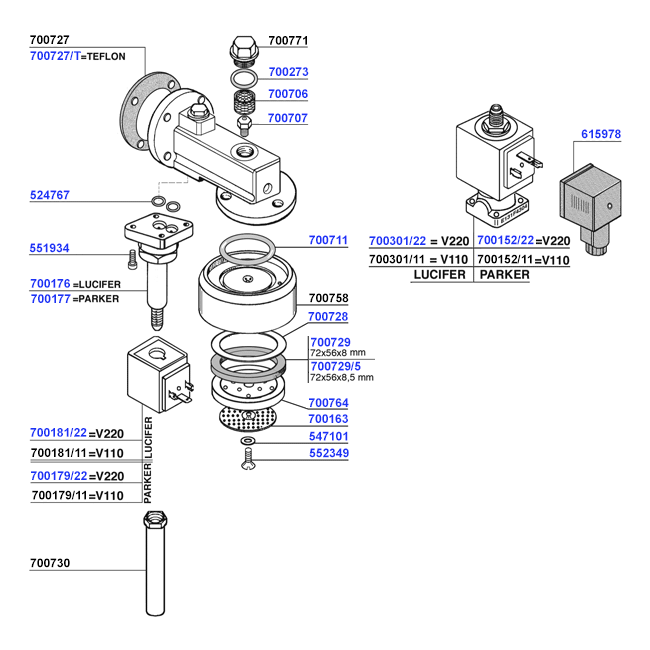

Select Parts from the Diagram or List Below

Green Viton O-ring R5 Ø 5.70×1.90mm
Green Viton O-ring R5 Ø 5.70×1.90mm
to fit San Marino
SKU
524767
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Stainless Steel Flat Washer M5×14mm UNI 6593
Stainless Steel Flat Washer M5×14mm UNI 6593
to fit San Marino
SKU
547101
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Stainless Steel Solenoid Valve Fixing Screw M4×10mm
Stainless Steel Solenoid Valve Fixing Screw M4×10mm
to fit San Marino
SKU
551934
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Stainless Steel Shower Fixing Screw TSC+ M5×12mm
Stainless Steel Shower Fixing Screw TSC+ M5×12mm
to fit San Marino
SKU
552349
Units
Each
Add to Wishlist
$ 4 90
Out of Stock Get notified when it arrives
Solenoid Valve Connector PG9 27×27×27mm
Solenoid Valve Connector PG9 27×27×27mm
to fit San Marino
SKU
615978
Units
Each
Add to Wishlist
$ 14 19
In Stock Ready for Dispatch
3-Way Solenoid Valve Parker V110/50-60 9W Orifice Ø 1.5mm – 20 Bar
3-Way Solenoid Valve Parker V110/50-60 9W Orifice Ø 1.5mm – 20 Bar
to fit San Marino
SKU
700152-11
Units
Each
Add to Wishlist
$ 130 90
Out of Stock Get notified when it arrives
3-Way Solenoid Valve Parker V220-230/50-60Hz 9W – Orifice Ø 1.5mm – 20 Bar
3-Way Solenoid Valve Parker V220-230/50-60Hz 9W – Orifice Ø 1.5mm – 20 Bar
to fit San Marino
SKU
700152-22
Units
Each
Add to Wishlist
$ 130 90
In Stock Ready for Dispatch
Caulked IMS Shower Screen Ø 51.5mm
Caulked IMS Shower Screen Ø 51.5mm
to fit San Marino
SKU
700163
Units
Each
Add to Wishlist
$ 9 79
In Stock Ready for Dispatch
3 Way Solenoid Valve Body "Lucifer" Orifice Ø 1.5mm 24VDC
3 Way Solenoid Valve Body "Lucifer" Orifice Ø 1.5mm 24VDC
to fit San Marino
SKU
700176
Units
Each
Add to Wishlist
$ 78 82
In Stock Ready for Dispatch
3 Way Solenoid Valve Body Parker - Orifice Ø 1.5mm - 20 Bar - Conical Drain 1/8"
3 Way Solenoid Valve Body Parker - Orifice Ø 1.5mm - 20 Bar - Conical Drain 1/8"
to fit San Marino
SKU
700177
Units
Each
Add to Wishlist
$ 82 39
In Stock Ready for Dispatch
Solenoid Valve Coil Parker V110-120/50-60 9W 34×33×43mm
Solenoid Valve Coil Parker V110-120/50-60 9W 34×33×43mm
to fit San Marino
SKU
700179-11
Units
Each
Add to Wishlist
$ 60 39
Out of Stock Get notified when it arrives
Parker Solenoid Valve Coil 9W 230V 50/60Hz L.34mm H.33mm D.43mm Ø14mm
Parker Solenoid Valve Coil 9W 230V 50/60Hz L.34mm H.33mm D.43mm Ø14mm
to fit San Marino
SKU
700179-22
Units
Each
Add to Wishlist
$ 60 39
In Stock Ready for Dispatch
Solenoid Valve Coil Lucifer V110/50-60 9W 32×37.5×43.5mm
Solenoid Valve Coil Lucifer V110/50-60 9W 32×37.5×43.5mm
to fit San Marino
SKU
700181-11
Units
Each
Add to Wishlist
$ 60 39
Out of Stock Get notified when it arrives
Lucifer Solenoid Valve Coil 220/240V 50/60Hz 9W 32×38×43mm
Lucifer Solenoid Valve Coil 220/240V 50/60Hz 9W 32×38×43mm
to fit San Marino
SKU
700181-22
Units
Each
Add to Wishlist
$ 60 39
In Stock Ready for Dispatch
Portafilter Group Head Spacer/Shim Ø 70×58×0.8mm
Portafilter Group Head Spacer/Shim Ø 70×58×0.8mm
to fit San Marino
SKU
700200
Units
Each
Add to Wishlist
$ 2 04
In Stock Ready for Dispatch
EPDM O-ring 03050 Ø 15.8×2.62mm
EPDM O-ring 03050 Ø 15.8×2.62mm
to fit San Marino
SKU
700273
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
3-Way Solenoid Valve Lucifer V110/50-60Hz Ø 1.5mm Orifice 10 Bar 1/8" BSP
3-Way Solenoid Valve Lucifer V110/50-60Hz Ø 1.5mm Orifice 10 Bar 1/8" BSP
to fit San Marino
SKU
700301-11
Units
Each
Add to Wishlist
$ 130 90
Out of Stock Get notified when it arrives
3-Way Solenoid Valve Lucifer V220-240/50-60Hz 9W Orifice Ø 1.5mm 10 Bar 1/8" Conical Drain
3-Way Solenoid Valve Lucifer V220-240/50-60Hz 9W Orifice Ø 1.5mm 10 Bar 1/8" Conical Drain
to fit San Marino
SKU
700301-22
Units
Each
Add to Wishlist
$ 130 90
In Stock Ready for Dispatch
Brewing Group Gigleur Stainless Steel Filter Ø 14×10×12mm
Brewing Group Gigleur Stainless Steel Filter Ø 14×10×12mm
to fit San Marino
SKU
700706
Units
Each
Add to Wishlist
$ 10 40
In Stock Ready for Dispatch
Group Head Jet M5×1mm Hole Ø 0.7mm
Group Head Jet M5×1mm Hole Ø 0.7mm
to fit San Marino
SKU
700707
Units
Each
Add to Wishlist
$ 10 40
In Stock Ready for Dispatch
Brewing Group O-ring 4187 Silicone Ø 47.22×3.53mm
Brewing Group O-ring 4187 Silicone Ø 47.22×3.53mm
to fit San Marino
SKU
700711
Units
Each
Add to Wishlist
$ 7 10
In Stock Ready for Dispatch
Group Head Flange Gasket Ø 88×40×2mm – 4 Holes
Group Head Flange Gasket Ø 88×40×2mm – 4 Holes
to fit San Marino
SKU
700727
Units
Each
Add to Wishlist
$ 14 08
Out of Stock Get notified when it arrives
Group Head Teflon Flange Gasket Ø 88×40×2mm – 4 Holes
Group Head Teflon Flange Gasket Ø 88×40×2mm – 4 Holes
to fit San Marino
SKU
700727-t
Units
Each
Add to Wishlist
$ 20 08
In Stock Ready for Dispatch
Portafilter Group Head Spacer/Shim Ø 66×58×0.8mm
Portafilter Group Head Spacer/Shim Ø 66×58×0.8mm
to fit San Marino
SKU
700728
Units
Each
Add to Wishlist
$ 2 04
In Stock Ready for Dispatch
Portafilter Gasket with Internal Cuts 72×56×8mm
Portafilter Gasket with Internal Cuts 72×56×8mm
to fit San Marino
SKU
700729
Units
Each
Add to Wishlist
$ 8 69
In Stock Ready for Dispatch
Portafilter Gasket with Internal Cuts Ø 72×56×8.5mm
Portafilter Gasket with Internal Cuts Ø 72×56×8.5mm
to fit San Marino
SKU
700729-5
Units
Each
Add to Wishlist
$ 8 69
In Stock Ready for Dispatch
Group Head Solenoid Valve Drain Pipe 1/8"F × 92mm
Group Head Solenoid Valve Drain Pipe 1/8"F × 92mm
to fit San Marino
SKU
700730
Units
Each
Add to Wishlist
$ 32 23
Out of Stock Get notified when it arrives
Astoria CMA Spare Part 700758
Astoria CMA Spare Part 700758
to fit San Marino
SKU
700758
Units
Each
Add to Wishlist
$ 309 32
Out of Stock Get notified when it arrives
Shower Head Holder Ø59mm H 9.5mm – Hole Ø5.5mm
Shower Head Holder Ø59mm H 9.5mm – Hole Ø5.5mm
to fit San Marino
SKU
700764
Units
Each
Add to Wishlist
$ 69 19
Out of Stock Get notified when it arrives
Group Head Brass Plug M18 Ø 23.5×18mm Hex. 17mm
Group Head Brass Plug M18 Ø 23.5×18mm Hex. 17mm
to fit San Marino
SKU
700771
Units
Each
Add to Wishlist
$ 22 33
Out of Stock Get notified when it arrives

No parts found matching "". Contact our parts team with your machine serial number and we will help identify the part you need.

SKU san-marino-spare-parts-3
Old model group head
Brand San Marino
Item Returns This item can be returned
Parts to Fit San Marino

Diagrams

  1. San Marino - New model group head and portafilters
  2. San Marino - Greenline group head and portafilters
  3. San Marino - Old model group head
  4. San Marino - Portafilters and filter baskets
  5. San Marino - Steam and hot water valves
  6. San Marino - Water inlet, water levels and drains
  7. San Marino - Miscellaneous electronic parts and gauges
  8. San Marino - Touch pads and control boards
  9. San Marino - Elements and boiler components
  10. San Marino - Motors and rotary pumps
