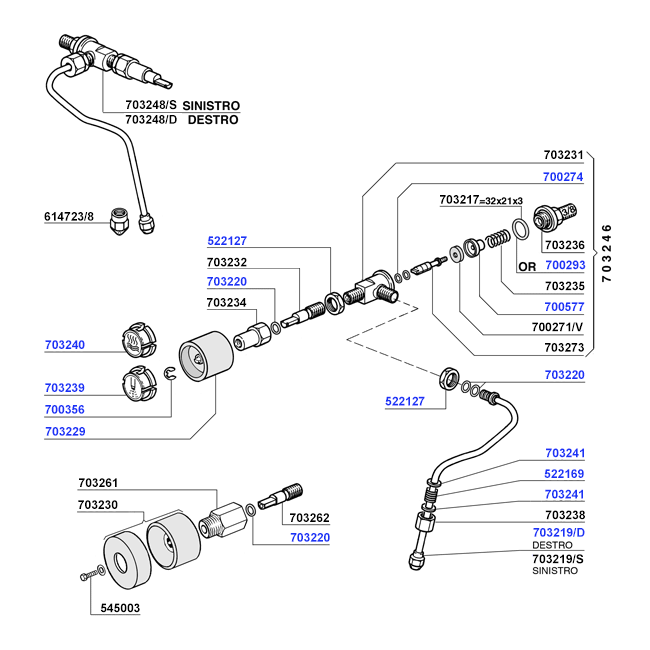

Spaziale - Steam and hot water valves 1 PARTS TO FIT SPAZIALE COFFEE MACHINES

Spaziale - Steam and hot water valves 1 703240-water-valve-knob-cap703239-steam-valve-knob-cap522127-lock-nut-3-8-inch-bsp703220-viton-o-ring700356-e-ring703229-steam-valve-black-knob-with-cap703220-viton-o-ring522127-lock-nut-3-8-inch-bsp703219-d-steam-arm-pipe-right-hand703241-stainless-washer522169-spring703241-stainless-washer703220-viton-o-ring700577-gasket-holder700293-o-ring700274-o-ring

Select Parts from the Diagram or List Below

Tap Assembly Complete with Steam Pipe Left – Connection 3/8" M×3/8" M
Tap Assembly Complete with Steam Pipe Left – Connection 3/8" M×3/8" M
to fit Spaziale
SKU
703248-s
Units
Each
Add to Wishlist
$ 251 90
Out of Stock Get notified when it arrives
Brass Ferrule G. 3/8" - H. 6mm - HEX.21mm
Brass Ferrule G. 3/8" - H. 6mm - HEX.21mm
to fit Spaziale
SKU
522127
Units
Each
Add to Wishlist
$ 6
In Stock Ready for Dispatch
Water/Steam Tap Valve Spring Ø 15×11.65×17mm
Water/Steam Tap Valve Spring Ø 15×11.65×17mm
to fit Spaziale
SKU
522169
Units
Each
Add to Wishlist
$ 9 30
In Stock Ready for Dispatch
Brass Screw Te M4×10mm
Brass Screw Te M4×10mm
to fit Spaziale
SKU
545003
Units
Each
Add to Wishlist
$ 4 90
Out of Stock Get notified when it arrives
Silicone O-ring 02015 Ø 3.68×1.78mm
Silicone O-ring 02015 Ø 3.68×1.78mm
to fit Spaziale
SKU
700274
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Red Silicone O-ring 03081 Ø 20.29×2.62mm
Red Silicone O-ring 03081 Ø 20.29×2.62mm
to fit Spaziale
SKU
700293
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Snap Radial Ring Ø 7mm UNI 7437
Snap Radial Ring Ø 7mm UNI 7437
to fit Spaziale
SKU
700356
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Brass Tap Valve Gasket Holder Ø 14.7×13.2×16.5mm
Brass Tap Valve Gasket Holder Ø 14.7×13.2×16.5mm
to fit Spaziale
SKU
700577
Units
Each
Add to Wishlist
$ 14 19
In Stock Ready for Dispatch
Steam/Water Inlet Valve Gasket Ø 30×21×3mm
Steam/Water Inlet Valve Gasket Ø 30×21×3mm
to fit Spaziale
SKU
703217
Units
Each
Add to Wishlist
$ 6
Out of Stock Get notified when it arrives
Viton O-ring 02025 Ø 6.07×1.78mm
Viton O-ring 02025 Ø 6.07×1.78mm
to fit Spaziale
SKU
703220
Units
Each
Add to Wishlist
$ 8 69
In Stock Ready for Dispatch
Water Tap Knob with Pin Connection 8×6mm
Water Tap Knob with Pin Connection 8×6mm
to fit Spaziale
SKU
703229
Units
Each
Add to Wishlist
$ 28 71
In Stock Ready for Dispatch
703230
703230
to fit Spaziale
SKU
703230
Units
Each
Add to Wishlist
$ 21 89
Out of Stock Get notified when it arrives
Brass Steam/Water Inlet Valve Body – Joint Connection Ø 3/8" M
Brass Steam/Water Inlet Valve Body – Joint Connection Ø 3/8" M
to fit Spaziale
SKU
703231
Units
Each
Add to Wishlist
$ 81 62
Out of Stock Get notified when it arrives
Steam Tap Opening Brass Pin L. 53mm
Steam Tap Opening Brass Pin L. 53mm
to fit Spaziale
SKU
703232
Units
Each
Add to Wishlist
$ 30 69
Out of Stock Get notified when it arrives
Water/Steam Tap Threaded Rod Brass Upper Fitting G. 3/8F Hex. 21 H. 33mm
Water/Steam Tap Threaded Rod Brass Upper Fitting G. 3/8F Hex. 21 H. 33mm
to fit Spaziale
SKU
703234
Units
Each
Add to Wishlist
$ 33 99
Out of Stock Get notified when it arrives
Water/Steam Tap Valve Spring Ø 13×9.6×26mm
Water/Steam Tap Valve Spring Ø 13×9.6×26mm
to fit Spaziale
SKU
703235
Units
Each
Add to Wishlist
$ 6
Out of Stock Get notified when it arrives
Water/Steam Tap Back Fitting G. 3/8" M–1/2" M Hex. 19mm
Water/Steam Tap Back Fitting G. 3/8" M–1/2" M Hex. 19mm
to fit Spaziale
SKU
703236
Units
Each
Add to Wishlist
$ 54 89
Out of Stock Get notified when it arrives
Brass Nut G. 3/8"F for Water/Steam Pipe — Hex. 20mm
Brass Nut G. 3/8"F for Water/Steam Pipe — Hex. 20mm
to fit Spaziale
SKU
703238
Units
Each
Add to Wishlist
$ 11 55
Out of Stock Get notified when it arrives
Steam Tap Knob Cap
Steam Tap Knob Cap
to fit Spaziale
SKU
703239
Units
Each
Add to Wishlist
$ 26 29
In Stock Ready for Dispatch
Water Tap Knob Cap
Water Tap Knob Cap
to fit Spaziale
SKU
703240
Units
Each
Add to Wishlist
$ 26 29
In Stock Ready for Dispatch
Stainless Steel Flat Washer Ø15×11.3×1mm Tap Joint
Stainless Steel Flat Washer Ø15×11.3×1mm Tap Joint
to fit Spaziale
SKU
703241
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Water/Steam Tap Assembly 3/8" M×3/8" M Connection
Water/Steam Tap Assembly 3/8" M×3/8" M Connection
to fit Spaziale
SKU
703246
Units
Each
Add to Wishlist
$ 141 90
Out of Stock Get notified when it arrives
Water/Steam Tap Threaded Rod Brass Upper Fitting G. 3/8M-3/8F Hex. 21 H. 33mm
Water/Steam Tap Threaded Rod Brass Upper Fitting G. 3/8M-3/8F Hex. 21 H. 33mm
to fit Spaziale
SKU
703261
Units
Each
Add to Wishlist
$ 47 08
Out of Stock Get notified when it arrives
Water/Steam Tap Opening Pin L. 47mm
Water/Steam Tap Opening Pin L. 47mm
to fit Spaziale
SKU
703262
Units
Each
Add to Wishlist
$ 29 92
Out of Stock Get notified when it arrives
Water/Steam Tap Valve Brass Pin 55mm
Water/Steam Tap Valve Brass Pin 55mm
to fit Spaziale
SKU
703273
Units
Each
Add to Wishlist
$ 21 89
Out of Stock Get notified when it arrives
"Nr Chromed" Female Steam Nozzle 1/8"F Ø 12×16mm with 4 Holes Ø 1.6mm
"Nr Chromed" Female Steam Nozzle 1/8"F Ø 12×16mm with 4 Holes Ø 1.6mm
to fit Spaziale
SKU
614723-8
Units
Each
Add to Wishlist
$ 20 57
In Stock Ready for Dispatch
Water/Steam Tap Viton Gasket Ø 15×6×3.5mm
Water/Steam Tap Viton Gasket Ø 15×6×3.5mm
to fit Spaziale
SKU
700271-v
Units
Each
Add to Wishlist
$ 7 10
Out of Stock Get notified when it arrives
Chromed Right-hand Steam Pipe Ø 8mm L. 220mm
Chromed Right-hand Steam Pipe Ø 8mm L. 220mm
to fit Spaziale
SKU
703219-d
Units
Each
Add to Wishlist
$ 54 89
In Stock Ready for Dispatch
Left-hand Chrome-plated Steam Wand Ø 8mm L. 220mm
Left-hand Chrome-plated Steam Wand Ø 8mm L. 220mm
to fit Spaziale
SKU
703219-s
Units
Each
Add to Wishlist
$ 54 89
Out of Stock Get notified when it arrives
Tap Assembly Complete With Steam Pipe Right - Connection 3/8"M×3/8"M
Tap Assembly Complete With Steam Pipe Right - Connection 3/8"M×3/8"M
to fit Spaziale
SKU
703248-d
Units
Each
Add to Wishlist
$ 251 90
Out of Stock Get notified when it arrives

No parts found matching "". Contact our parts team with your machine serial number and we will help identify the part you need.
