VBM - Water inlet PARTS TO FIT VBM COFFEE MACHINES

VBM - Water inlet 600035-o-ring524767-viton-o-ring-r5518538-gasket-holder529011-2-teflon-gasket-1-4-inch-bsp-inside-diameter522127-lock-nut-3-8-inch-bsp400145-chrome-nut-3-8-inch-bsp700036-fitting-1-4m-3-8m-inch-bsp

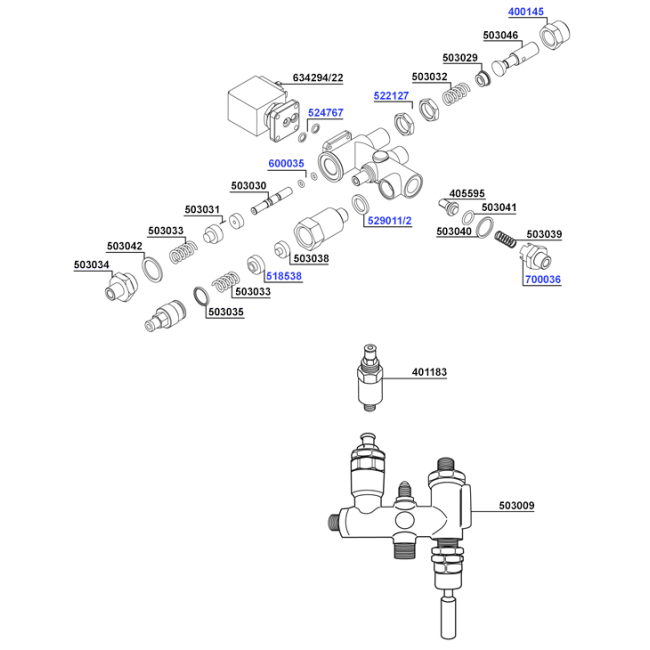

Select Parts from the Diagram or List Below

Chromed Nut G. 3/8F Charge Block
Chromed Nut G. 3/8F Charge Block
to fit VBM
SKU
400145
Units
Each
Add to Wishlist
$ 25 24
In Stock Ready for Dispatch
Expansion Valve 1/4" M 9–14.5 Bar with Barb Hose Adaptor Ø 10mm
Expansion Valve 1/4" M 9–14.5 Bar with Barb Hose Adaptor Ø 10mm
to fit VBM
SKU
401183
Units
Each
Add to Wishlist
$ 82 50
Out of Stock Get notified when it arrives
Long Non-return Valve Ø 7/12mm Height 20mm
Long Non-return Valve Ø 7/12mm Height 20mm
to fit VBM
SKU
405595
Units
Each
Add to Wishlist
$ 10 40
Out of Stock Get notified when it arrives
Water Autofill Valve Assembly with Expansion Valve - Inlet 3/8"M - Outlet 1/4"M
Water Autofill Valve Assembly with Expansion Valve - Inlet 3/8"M - Outlet 1/4"M
to fit VBM
SKU
503009
Units
Each
Add to Wishlist
$ 251 90
Out of Stock Get notified when it arrives
Control Shaft Bushing Ø 14.5/9×7×8mm
Control Shaft Bushing Ø 14.5/9×7×8mm
to fit VBM
SKU
503029
Units
Each
Add to Wishlist
$ 9 30
Out of Stock Get notified when it arrives
Water Charge Block Opening Brass Pin Ø 8×37mm
Water Charge Block Opening Brass Pin Ø 8×37mm
to fit VBM
SKU
503030
Units
Each
Add to Wishlist
$ 26 73
Out of Stock Get notified when it arrives
Set For Charge Block Valve
Set For Charge Block Valve
to fit VBM
SKU
503031
Units
Each
Add to Wishlist
$ 26 73
Out of Stock Get notified when it arrives
Water Load Block Fitting G. 1/4M - 1/2M
Water Load Block Fitting G. 1/4M - 1/2M
to fit VBM
SKU
503034
Units
Each
Add to Wishlist
$ 32 89
Out of Stock Get notified when it arrives
EPDM O-ring Gasket 0170-20 21×17×2mm
EPDM O-ring Gasket 0170-20 21×17×2mm
to fit VBM
SKU
503035
Units
Each
Add to Wishlist
$ 9 30
Out of Stock Get notified when it arrives
Expansion Valve Plug Gasket Ø 15/7mm × 10mm
Expansion Valve Plug Gasket Ø 15/7mm × 10mm
to fit VBM
SKU
503038
Units
Each
Add to Wishlist
$ 9 30
Out of Stock Get notified when it arrives
Charge Block Valve Spring Ø 8×7.2×31mm
Charge Block Valve Spring Ø 8×7.2×31mm
to fit VBM
SKU
503039
Units
Each
Add to Wishlist
$ 12 21
Out of Stock Get notified when it arrives
Flat PTFE Gasket G. 3/8" Ø 21×16.8×2mm
Flat PTFE Gasket G. 3/8" Ø 21×16.8×2mm
to fit VBM
SKU
503040
Units
Each
Add to Wishlist
$ 4 90
Out of Stock Get notified when it arrives
Charge Block "R7" O-ring Gasket Ø 12.7×8.9×1.9mm
Charge Block "R7" O-ring Gasket Ø 12.7×8.9×1.9mm
to fit VBM
SKU
503041
Units
Each
Add to Wishlist
$ 6
Out of Stock Get notified when it arrives
Teflon Flat Gasket Ø 25×20.5×2mm
Teflon Flat Gasket Ø 25×20.5×2mm
to fit VBM
SKU
503042
Units
Each
Add to Wishlist
$ 4 24
Out of Stock Get notified when it arrives
Water Charge Block Opening Pin Ø 12×47.5mm
Water Charge Block Opening Pin Ø 12×47.5mm
to fit VBM
SKU
503046
Units
Each
Add to Wishlist
$ 43 78
Out of Stock Get notified when it arrives
Expansion Valve Brass Gasket Holder Ø 17×9mm
Expansion Valve Brass Gasket Holder Ø 17×9mm
to fit VBM
SKU
518538
Units
Each
Add to Wishlist
$ 6
In Stock Ready for Dispatch
Brass Ferrule G. 3/8" - H. 6mm - HEX.21mm
Brass Ferrule G. 3/8" - H. 6mm - HEX.21mm
to fit VBM
SKU
522127
Units
Each
Add to Wishlist
$ 6
In Stock Ready for Dispatch
Green Viton O-ring R5 Ø 5.70×1.90mm
Green Viton O-ring R5 Ø 5.70×1.90mm
to fit VBM
SKU
524767
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
O-ring 02015 Viton Ø 3.69×1.78mm
O-ring 02015 Viton Ø 3.69×1.78mm
to fit VBM
SKU
600035
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Brass Fitting 1/4" M × 3/8" M Hexagon 17mm
Brass Fitting 1/4" M × 3/8" M Hexagon 17mm
to fit VBM
SKU
700036
Units
Each
Add to Wishlist
$ 9 07
In Stock Ready for Dispatch
Teflon Flat Gasket G. 1/4" Ø 18×13.4×2mm
Teflon Flat Gasket G. 1/4" Ø 18×13.4×2mm
to fit VBM
SKU
529011-2
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
2-way PARKER solenoid valve 220v 50/60 (complete)
2-way PARKER solenoid valve 220v 50/60 (complete)
to fit VBM
SKU
634294-22
Units
Each
Add to Wishlist
$ 114 40
Out of Stock Get notified when it arrives

No parts found matching "". Contact our parts team with your machine serial number and we will help identify the part you need.

SKU vbm-spare-parts-10
Water inlet
Brand VBM
Item Returns This item can be returned
Parts to Fit

Diagrams

  1. VBM - Group head e61 lever operated
  2. VBM - Group head e61 solenoid operated
  3. VBM - Group head solenoid operated
  4. VBM - Portafilters and Filter Baskets
  5. VBM - Steam and hot water valves 1
  6. VBM - Steam and hot water valves 2
  7. VBM - Steam and hot water valves 3
  8. VBM - Water inlet 1
  9. VBM - Water inlet 2
  10. VBM - Water inlet
  11. VBM - Elements and boiler components
  12. VBM - Touch pads, switches and control boards
  13. VBM - Motors and rotary pumps
