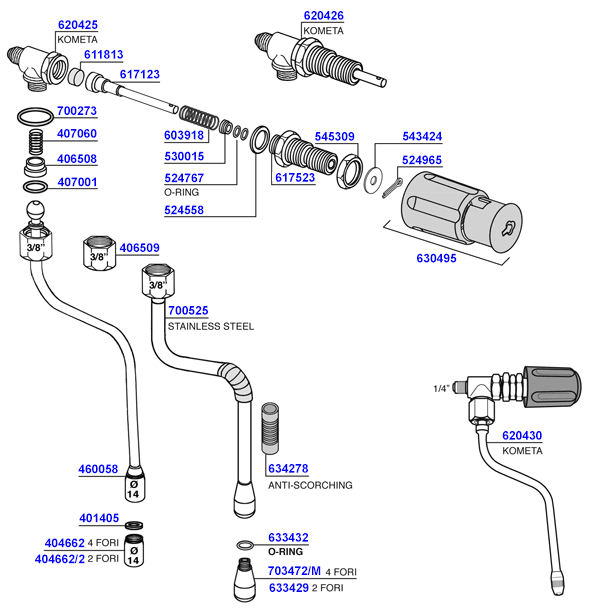

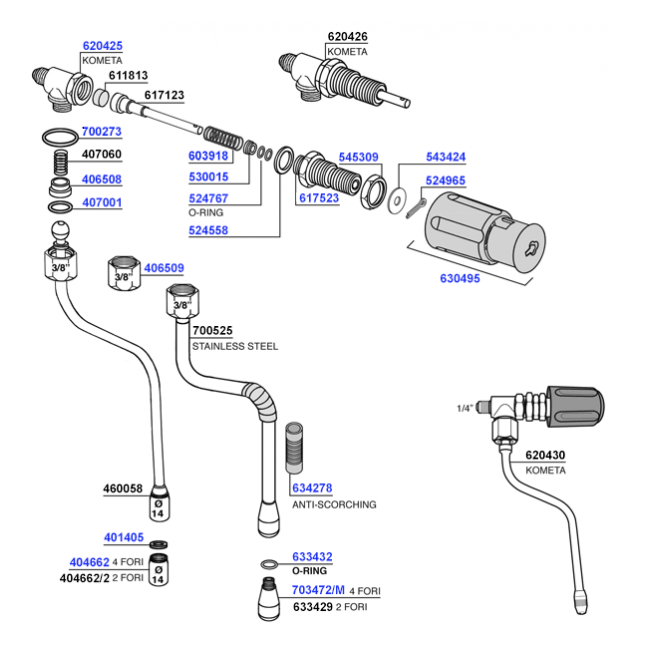

VBM - Steam and hot water valves 3 PARTS TO FIT VBM COFFEE MACHINES

VBM - Steam and hot water valves 3 620425-steam-valve-body700273-o-ring406508-sleeve407001-o-ring406509-steam-arm-pipe-nut524558-copper-gasket524767-viton-o-ring-r5603918-steam-valve-spring530015-steam-valve-sleeve401405-teflon-gasket404662-steam-nozzle633432-o-ring-stainless-steel-steam-tip634278-anti-burn-rubber-sleeves-for-8-10mm-steam-arms703472-m-steam-nozzle630495-steam-valve-black-knob617523-steam-valve-complete-fitting-1mm-pitch524965-cotter-pin545309-lock-nut-1-2-inch-bsp543424-washer-6x18mm

Select Parts from the Diagram or List Below

Flat PTFE Gasket Ø 12×10×1mm
Flat PTFE Gasket Ø 12×10×1mm
to fit VBM
SKU
401405
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Chromed Female Steam Nozzle 1/8F Ø 13×16mm 4 Holes Ø 1.7mm
Chromed Female Steam Nozzle 1/8F Ø 13×16mm 4 Holes Ø 1.7mm
to fit VBM
SKU
404662
Units
Each
Add to Wishlist
$ 20 79
In Stock Ready for Dispatch
Steam Nozzle 1/8"F Ø 13×16mm 2 Holes Ø 1.7mm
Steam Nozzle 1/8"F Ø 13×16mm 2 Holes Ø 1.7mm
to fit VBM
SKU
404662-2
Units
Each
Add to Wishlist
$ 16 39
Out of Stock Get notified when it arrives
Water/Steam Tap Joint Spring Guide Brass Bushing Ø 12/9×7×5mm
Water/Steam Tap Joint Spring Guide Brass Bushing Ø 12/9×7×5mm
to fit VBM
SKU
406508
Units
Each
Add to Wishlist
$ 11 99
In Stock Ready for Dispatch
Chromed Nut G. 3/8F Water/Steam Pipe – Hex. 22mm, H. 21mm
Chromed Nut G. 3/8F Water/Steam Pipe – Hex. 22mm, H. 21mm
to fit VBM
SKU
406509
Units
Each
Add to Wishlist
$ 15 29
In Stock Ready for Dispatch
Water/Steam Tap Jointnut O-ring R10 EPDM Ø 12.10×2.70mm
Water/Steam Tap Jointnut O-ring R10 EPDM Ø 12.10×2.70mm
to fit VBM
SKU
407001
Units
Each
Add to Wishlist
$ 7 10
In Stock Ready for Dispatch
Water/Steam Tap Joint Spring Ø 12×9×15.5mm
Water/Steam Tap Joint Spring Ø 12×9×15.5mm
to fit VBM
SKU
407060
Units
Each
Add to Wishlist
$ 8 20
In Stock Ready for Dispatch
Chromed Articulated Steam Wand Ø 8mm with 3/8F Nut – 170mm
Chromed Articulated Steam Wand Ø 8mm with 3/8F Nut – 170mm
to fit VBM
SKU
460058
Units
Each
Add to Wishlist
$ 54 89
Out of Stock Get notified when it arrives
"Copper En" Flat Gasket Ø 22×16×2.5mm
"Copper En" Flat Gasket Ø 22×16×2.5mm
to fit VBM
SKU
524558
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Green Viton O-ring R5 Ø 5.70×1.90mm
Green Viton O-ring R5 Ø 5.70×1.90mm
to fit VBM
SKU
524767
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Stainless Steel Cotter Pin Ø 2×12mm Uni 1336
Stainless Steel Cotter Pin Ø 2×12mm Uni 1336
to fit VBM
SKU
524965
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Water/Steam Valve Sleeve Ø 6×9mm Brass
Water/Steam Valve Sleeve Ø 6×9mm Brass
to fit VBM
SKU
530015
Units
Each
Add to Wishlist
$ 6
In Stock Ready for Dispatch
Zinc-plated Flat Washer Ø 18×6.5×1.5mm
Zinc-plated Flat Washer Ø 18×6.5×1.5mm
to fit VBM
SKU
543424
Units
Each
Add to Wishlist
$ 3 80
In Stock Ready for Dispatch
Brass Ferrule G. 1/2" — H. 7mm — HEX.25mm
Brass Ferrule G. 1/2" — H. 7mm — HEX.25mm
to fit VBM
SKU
545309
Units
Each
Add to Wishlist
$ 6
In Stock Ready for Dispatch
Water/Steam Tap Shaft Spring Ø 10.4×7.7×33.9mm
Water/Steam Tap Shaft Spring Ø 10.4×7.7×33.9mm
to fit VBM
SKU
603918
Units
Each
Add to Wishlist
$ 10 40
In Stock Ready for Dispatch
Viton Blind Gasket 70SH Stem Valve Ø 12.5×5.5mm
Viton Blind Gasket 70SH Stem Valve Ø 12.5×5.5mm
to fit VBM
SKU
611813
Units
Each
Add to Wishlist
$ 3 80
In Stock Ready for Dispatch
Complete Water/Steam Valve Stem
Complete Water/Steam Valve Stem
to fit VBM
SKU
617123
Units
Each
Add to Wishlist
$ 25 41
Out of Stock Get notified when it arrives
Brass Valve Pin – 3 Threads – Pitch 2mm – HEX.26mm
Brass Valve Pin – 3 Threads – Pitch 2mm – HEX.26mm
to fit VBM
SKU
617523
Units
Each
Add to Wishlist
$ 38 72
In Stock Ready for Dispatch
Steam/Water Valve Body with Joint Connection 3/8"M and Flare Fitting 1/4"M
Steam/Water Valve Body with Joint Connection 3/8"M and Flare Fitting 1/4"M
to fit VBM
SKU
620425
Units
Each
Add to Wishlist
$ 32 89
Out of Stock Get notified when it arrives
Steam/Water Valve Without Tube – Flare Connection 1/4" M × 3/8" M
Steam/Water Valve Without Tube – Flare Connection 1/4" M × 3/8" M
to fit VBM
SKU
620426
Units
Each
Add to Wishlist
$ 74 80
Out of Stock Get notified when it arrives
Steam Valve with Steam Hose and Handwheel
Steam Valve with Steam Hose and Handwheel
to fit VBM
SKU
620430
Units
Each
Add to Wishlist
$ 119 90
Out of Stock Get notified when it arrives
Steam Valve Black Knob Ø 40mm
Steam Valve Black Knob Ø 40mm
to fit VBM
SKU
630495
Units
Each
Add to Wishlist
$ 28 71
In Stock Ready for Dispatch
Stainless Steel Male Steam Nozzle M8.5×0.75 — 2 Holes Ø 1.5mm — Ø 10.5×27mm
Stainless Steel Male Steam Nozzle M8.5×0.75 — 2 Holes Ø 1.5mm — Ø 10.5×27mm
to fit VBM
SKU
633429
Units
Each
Add to Wishlist
$ 20 08
In Stock Ready for Dispatch
Or Gasket Stainless Steel Steam Nozzle Ø 6×1mm
Or Gasket Stainless Steel Steam Nozzle Ø 6×1mm
to fit VBM
SKU
633432
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Antiscorching Clips for Steam Pipe Ø 8mm – L. 35mm
Antiscorching Clips for Steam Pipe Ø 8mm – L. 35mm
to fit VBM
SKU
634278
Units
Each
Add to Wishlist
$ 8 20
In Stock Ready for Dispatch
EPDM O-ring 03050 Ø 15.8×2.62mm
EPDM O-ring 03050 Ø 15.8×2.62mm
to fit VBM
SKU
700273
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Stainless Steel Steam Wand Millenium 8"
Stainless Steel Steam Wand Millenium 8"
to fit VBM
SKU
700525
Units
Each
Add to Wishlist
$ 54 89
Out of Stock Get notified when it arrives
Stainless Steel Male Steam Nozzle 8.5×0.75 Thread – 4 Holes Ø 1.5mm – Ø 10×27mm
Stainless Steel Male Steam Nozzle 8.5×0.75 Thread – 4 Holes Ø 1.5mm – Ø 10×27mm
to fit VBM
SKU
703472-m
Units
Each
Add to Wishlist
$ 20 08
In Stock Ready for Dispatch

No parts found matching "". Contact our parts team with your machine serial number and we will help identify the part you need.

SKU vbm-spare-parts-7
Steam and hot water valves
Brand VBM
