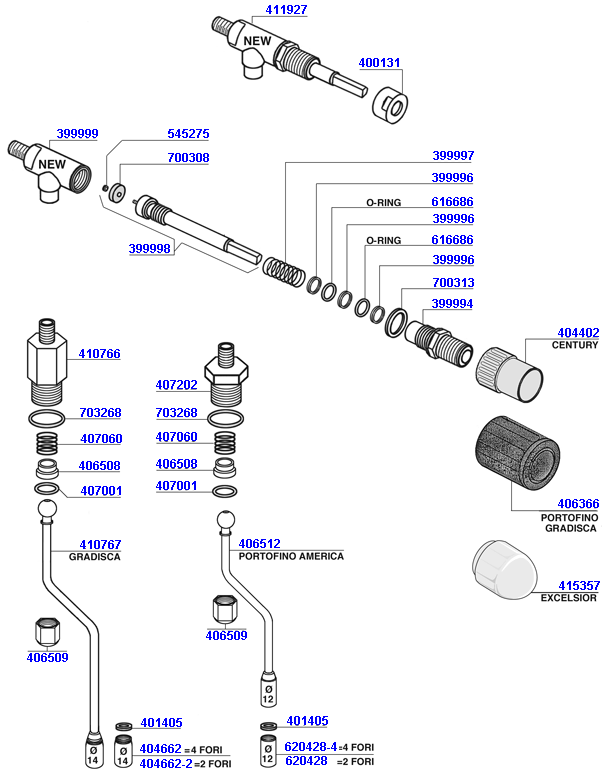

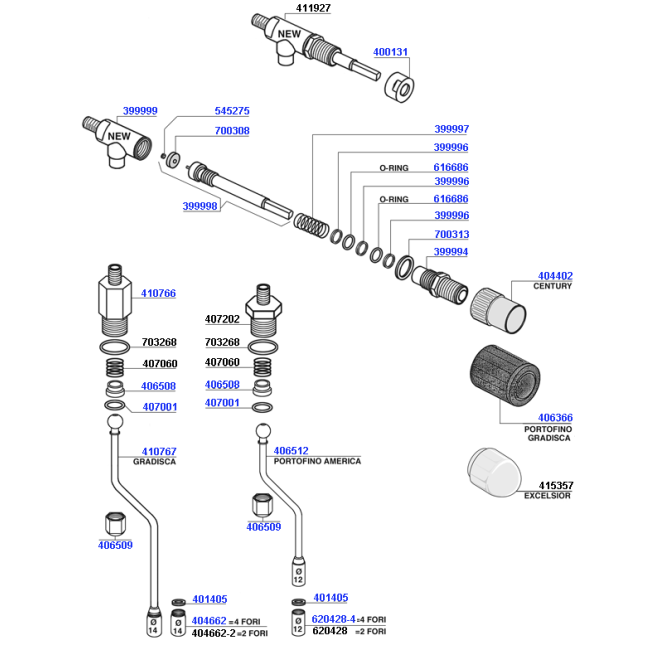

Brasilia - Steam and hot water valves PARTS TO FIT BRASILIA COFFEE MACHINES

Brasilia - Steam and hot water valves 399999-steam-valve-body545275-nut-m3400131-steam-valve-lock-nut700308-gasket399998-complete-steam-valve-stem399997-spring399996-washer616686-o-ring399996-washer616686-o-ring399996-washer700313-copper-gasket-24x20x1mm399994-fitting404402-steam-valve-knob-century406366-steam-valve-knob620428-steam-tip-2-holes-m10x1401405-teflon-gasket404662-steam-nozzle406509-steam-arm-pipe-nut406509-steam-arm-pipe-nut406512-steam-arm-pipe410767-steam-arm-pipe-gradisca407001-o-ring407001-o-ring406508-sleeve406508-sleeve410766-fitting-3-8-1-8-inch-bsp401405-teflon-gasket

Select Parts from the Diagram or List Below

Upper Fitting for Water/Steam Valve
Upper Fitting for Water/Steam Valve
to fit Brasilia
SKU
399994
Units
Each
Add to Wishlist
$ 19 64
In Stock Ready for Dispatch
Water/Steam Tap Shaft Brass Flat Washer Ø 10.8×9×2mm
Water/Steam Tap Shaft Brass Flat Washer Ø 10.8×9×2mm
to fit Brasilia
SKU
399996
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Water/Steam Tap Shaft Spring Ø 10.7×8.2×26mm
Water/Steam Tap Shaft Spring Ø 10.7×8.2×26mm
to fit Brasilia
SKU
399997
Units
Each
Add to Wishlist
$ 11 99
In Stock Ready for Dispatch
Water/Steam Tap Opening Pin 100mm
Water/Steam Tap Opening Pin 100mm
to fit Brasilia
SKU
399998
Units
Each
Add to Wishlist
$ 32 89
In Stock Ready for Dispatch
Steam/Water Valve Body with Joint Connection Ø 1/8F
Steam/Water Valve Body with Joint Connection Ø 1/8F
to fit Brasilia
SKU
399999
Units
Each
Add to Wishlist
$ 54 45
In Stock Ready for Dispatch
Water/Steam Tap Ferrule
Water/Steam Tap Ferrule
to fit Brasilia
SKU
400131
Units
Each
Add to Wishlist
$ 38 06
In Stock Ready for Dispatch
Flat PTFE Gasket Ø 12×10×1mm
Flat PTFE Gasket Ø 12×10×1mm
to fit Brasilia
SKU
401405
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Handwheel for Steam/Water Valve – Brasilia Gradisca/Portofino
Handwheel for Steam/Water Valve – Brasilia Gradisca/Portofino
to fit Brasilia
SKU
404402
Units
Each
Add to Wishlist
$ 29 59
In Stock Ready for Dispatch
Chromed Female Steam Nozzle 1/8F Ø 13×16mm 4 Holes Ø 1.7mm
Chromed Female Steam Nozzle 1/8F Ø 13×16mm 4 Holes Ø 1.7mm
to fit Brasilia
SKU
404662
Units
Each
Add to Wishlist
$ 20 79
In Stock Ready for Dispatch
Handwheel for Steam/Water Valve – Brasilia Gradisca/Portofino
Handwheel for Steam/Water Valve – Brasilia Gradisca/Portofino
to fit Brasilia
SKU
406366
Units
Each
Add to Wishlist
$ 15 07
In Stock Ready for Dispatch
Water/Steam Tap Joint Spring Guide Brass Bushing Ø 12/9×7×5mm
Water/Steam Tap Joint Spring Guide Brass Bushing Ø 12/9×7×5mm
to fit Brasilia
SKU
406508
Units
Each
Add to Wishlist
$ 11 99
In Stock Ready for Dispatch
Chromed Nut G. 3/8F Water/Steam Pipe – Hex. 22mm, H. 21mm
Chromed Nut G. 3/8F Water/Steam Pipe – Hex. 22mm, H. 21mm
to fit Brasilia
SKU
406509
Units
Each
Add to Wishlist
$ 15 29
In Stock Ready for Dispatch
Chromed Steam Pipe Ø 8mm L. 150mm
Chromed Steam Pipe Ø 8mm L. 150mm
to fit Brasilia
SKU
406512
Units
Each
Add to Wishlist
$ 47 08
In Stock Ready for Dispatch
Water/Steam Tap Jointnut O-ring R10 EPDM Ø 12.10×2.70mm
Water/Steam Tap Jointnut O-ring R10 EPDM Ø 12.10×2.70mm
to fit Brasilia
SKU
407001
Units
Each
Add to Wishlist
$ 7 10
In Stock Ready for Dispatch
Water/Steam Tap Joint Spring Ø 12×9×15.5mm
Water/Steam Tap Joint Spring Ø 12×9×15.5mm
to fit Brasilia
SKU
407060
Units
Each
Add to Wishlist
$ 8 20
In Stock Ready for Dispatch
Reducer Fitting 1/8" M × 3/8" M BSP
Reducer Fitting 1/8" M × 3/8" M BSP
to fit Brasilia
SKU
407202
Units
Each
Add to Wishlist
$ 21 18
Out of Stock Get notified when it arrives
Water/Steam Valve Joint Fitting G. 1/8M - 3/8M
Water/Steam Valve Joint Fitting G. 1/8M - 3/8M
to fit Brasilia
SKU
410766
Units
Each
Add to Wishlist
$ 37 62
In Stock Ready for Dispatch
Chromed Steam Wand with Articulated Joint Ø 10mm, 3/8"F Nut, 225mm
Chromed Steam Wand with Articulated Joint Ø 10mm, 3/8"F Nut, 225mm
to fit Brasilia
SKU
410767
Units
Each
Add to Wishlist
$ 54 89
Out of Stock Get notified when it arrives
Steam/Water Valve Assembly With Rubber Seal – Conical Connection 1/4"
Steam/Water Valve Assembly With Rubber Seal – Conical Connection 1/4"
to fit Brasilia
SKU
411927
Units
Each
Add to Wishlist
$ 152 90
Out of Stock Get notified when it arrives
Brass Nut M3 — Hex 6mm, Height 2.3mm
Brass Nut M3 — Hex 6mm, Height 2.3mm
to fit Brasilia
SKU
545275
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
O-ring R6 EPDM Ø 7.20×1.90mm
O-ring R6 EPDM Ø 7.20×1.90mm
to fit Brasilia
SKU
616686
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Female Steam Nozzle M10×1 Ø 12×17mm – 2 Holes Ø 1.5mm
Female Steam Nozzle M10×1 Ø 12×17mm – 2 Holes Ø 1.5mm
to fit Brasilia
SKU
620428
Units
Each
Add to Wishlist
$ 15 29
Out of Stock Get notified when it arrives
Water/Steam Tap NBR Rubber Gasket Ø 14×4×4mm
Water/Steam Tap NBR Rubber Gasket Ø 14×4×4mm
to fit Brasilia
SKU
700308
Units
Each
Add to Wishlist
$ 6
In Stock Ready for Dispatch
Water/Steam Tap Copper Gasket Ø 24×20.2×1mm
Water/Steam Tap Copper Gasket Ø 24×20.2×1mm
to fit Brasilia
SKU
700313
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
EPDM O-ring 0121 Ø 15.88×2.62mm
EPDM O-ring 0121 Ø 15.88×2.62mm
to fit Brasilia
SKU
703268
Units
Each
Add to Wishlist
$ 3 80
Out of Stock Get notified when it arrives
Steam Nozzle 1/8"F Ø 13×16mm 2 Holes Ø 1.7mm
Steam Nozzle 1/8"F Ø 13×16mm 2 Holes Ø 1.7mm
to fit Brasilia
SKU
404662-2
Units
Each
Add to Wishlist
$ 16 39
Out of Stock Get notified when it arrives
Chromed Female Steam Nozzle M10×1 Ø 12×17mm 4 Holes Ø 1.5mm
Chromed Female Steam Nozzle M10×1 Ø 12×17mm 4 Holes Ø 1.5mm
to fit Brasilia
SKU
620428-4
Units
Each
Add to Wishlist
$ 20 13
In Stock Ready for Dispatch

No parts found matching "". Contact our parts team with your machine serial number and we will help identify the part you need.

SKU brasilia-spare-parts-10
Steam and hot water valves
Brand Brasilia
Item Returns This item can be returned
Parts to Fit

Diagrams

  1. Brasilia - Group head 'be' solenoid operated
  2. Brasilia - Group head '1a series' solenoid operated
  3. Brasilia - Group head 'b61' solenoid operated
  4. Brasilia - Lever group head
  5. Brasilia - Portafilters and filter baskets
  6. Brasilia - Steam and hot water valves 1
  7. Brasilia - Steam and hot water valves 2
  8. Brasilia - Steam and hot water valves 3
  9. Brasilia - Steam and hot water valves 4
  10. Brasilia - Steam and hot water valves
  11. Brasilia - Water levels and drains
  12. Brasilia - Water inlet valves
  13. Brasilia - Water inlet valves and flowmeter
  14. Brasilia - Touch pads, switches and control boards
  15. Brasilia - Touch pads, switches and control boards
  16. Brasilia - Elements and boiler components
  17. Brasilia - Motors and rotary pumps
