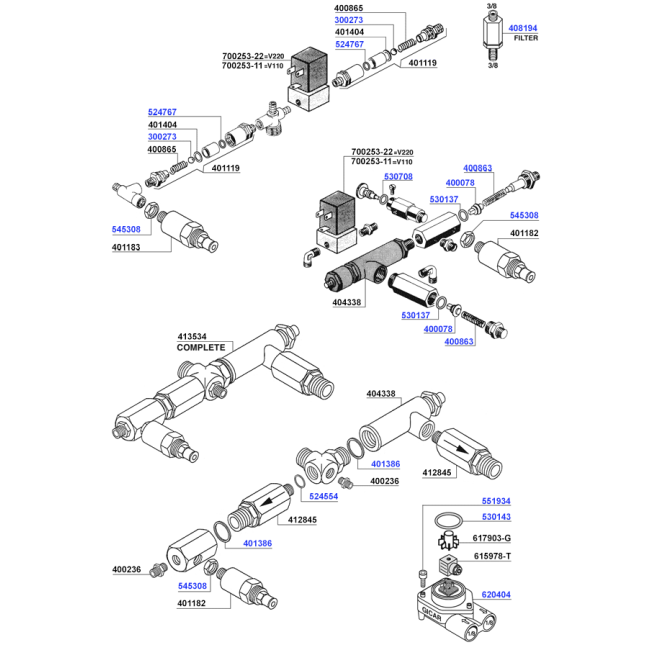

Brasilia - Water inlet valves and flowmeter PARTS TO FIT BRASILIA COFFEE MACHINES

Brasilia - Water inlet valves and flowmeter 524767-viton-o-ring-r5300273-stainless-ball-d8300273-stainless-ball-d8524767-viton-o-ring-r5408194-short-pump-filter-3-8m-3-8m-inch-bsp400863-spring400078-one-way-valve-short530137-o-ring530708-viton-o-ring545308-lock-nut-1-4-inch-bsp530137-o-ring400078-one-way-valve-short400863-spring401386-copper-gasket551934-stainless-screw-m4x10530143-turbine-o-ring620404-gicar-impeller-1-8-inch-bsp-with-led545308-lock-nut-1-4-inch-bsp401386-copper-gasket524554-copper-gasket-1-4-inch-bsp545308-lock-nut-1-4-inch-bsp

Select Parts from the Diagram or List Below

Stainless Steel Sphere Ø 8mm
Stainless Steel Sphere Ø 8mm
to fit Brasilia
SKU
300273
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Long Non-return Valve Ø 7×12mm Height 20mm
Long Non-return Valve Ø 7×12mm Height 20mm
to fit Brasilia
SKU
400078
Units
Each
Add to Wishlist
$ 8 75
In Stock Ready for Dispatch
Brass Fitting 1/8" M×1/8" M HEX.12mm
Brass Fitting 1/8" M×1/8" M HEX.12mm
to fit Brasilia
SKU
400236
Units
Each
Add to Wishlist
$ 14 19
Out of Stock Get notified when it arrives
Non-return Valve Spring Ø 8×30mm
Non-return Valve Spring Ø 8×30mm
to fit Brasilia
SKU
400863
Units
Each
Add to Wishlist
$ 6
In Stock Ready for Dispatch
Charge Block Spring Ø 7.35×6.7×21.6mm
Charge Block Spring Ø 7.35×6.7×21.6mm
to fit Brasilia
SKU
400865
Units
Each
Add to Wishlist
$ 6
Out of Stock Get notified when it arrives
Non-return Valve Ø 1/8" M×1/8" M
Non-return Valve Ø 1/8" M×1/8" M
to fit Brasilia
SKU
401119
Units
Each
Add to Wishlist
$ 60 39
Out of Stock Get notified when it arrives
Expansion Valve 1/4" M 9-14.5 Bar with Barb Hose Adaptor Ø 10mm
Expansion Valve 1/4" M 9-14.5 Bar with Barb Hose Adaptor Ø 10mm
to fit Brasilia
SKU
401182
Units
Each
Add to Wishlist
$ 142 01
Out of Stock Get notified when it arrives
Expansion Valve 1/4" M 9–14.5 Bar with Barb Hose Adaptor Ø 10mm
Expansion Valve 1/4" M 9–14.5 Bar with Barb Hose Adaptor Ø 10mm
to fit Brasilia
SKU
401183
Units
Each
Add to Wishlist
$ 82 50
Out of Stock Get notified when it arrives
Copper Gasket G. 3/8" Ø 23×17×3mm
Copper Gasket G. 3/8" Ø 23×17×3mm
to fit Brasilia
SKU
401386
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
"Copper" Gasket G. 1/8" Ø 11.8×8.2×1.5mm
"Copper" Gasket G. 1/8" Ø 11.8×8.2×1.5mm
to fit Brasilia
SKU
401404
Units
Each
Add to Wishlist
$ 4 90
Out of Stock Get notified when it arrives
Water inlet valve
Water inlet valve
to fit Brasilia
SKU
404338
Units
Each
Add to Wishlist
$ 130 90
Out of Stock Get notified when it arrives
Pump Filter 3/8" M×3/8" M Hex. 34mm - H. 60mm
Pump Filter 3/8" M×3/8" M Hex. 34mm - H. 60mm
to fit Brasilia
SKU
408194
Units
Each
Add to Wishlist
$ 53 79
In Stock Ready for Dispatch
Charge Block 3/8" M × 1/4" M Hex. 21mm — H. 61mm
Charge Block 3/8" M × 1/4" M Hex. 21mm — H. 61mm
to fit Brasilia
SKU
412845
Units
Each
Add to Wishlist
$ 26 62
Out of Stock Get notified when it arrives
Copper Gasket G. 1/4" Ø 17.8×13.2×1.5mm
Copper Gasket G. 1/4" Ø 17.8×13.2×1.5mm
to fit Brasilia
SKU
524554
Units
Each
Add to Wishlist
$ 6 22
In Stock Ready for Dispatch
Green Viton O-ring R5 Ø 5.70×1.90mm
Green Viton O-ring R5 Ø 5.70×1.90mm
to fit Brasilia
SKU
524767
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
EPDM O-ring Gasket 108 Ø 8.73×1.78mm
EPDM O-ring Gasket 108 Ø 8.73×1.78mm
to fit Brasilia
SKU
530137
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Silicone Flowmeter Lid Gasket OR 2112 Ø 28.30×1.78mm
Silicone Flowmeter Lid Gasket OR 2112 Ø 28.30×1.78mm
to fit Brasilia
SKU
530143
Units
Each
Add to Wishlist
$ 4 24
In Stock Ready for Dispatch
Viton O-ring Gasket R3 Ø 4.20×1.9mm
Viton O-ring Gasket R3 Ø 4.20×1.9mm
to fit Brasilia
SKU
530708
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Brass Ferrule Nut Ø 1/4" H. 5mm HEX.17mm
Brass Ferrule Nut Ø 1/4" H. 5mm HEX.17mm
to fit Brasilia
SKU
545308
Units
Each
Add to Wishlist
$ 3 80
In Stock Ready for Dispatch
Stainless Steel Solenoid Valve Fixing Screw M4×10mm
Stainless Steel Solenoid Valve Fixing Screw M4×10mm
to fit Brasilia
SKU
551934
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Flowmeter Connector Assembly 15.5×15.5×25.5mm
Flowmeter Connector Assembly 15.5×15.5×25.5mm
to fit Brasilia
SKU
615978-t
Units
Each
Add to Wishlist
$ 14 19
Out of Stock Get notified when it arrives
Gicar Flowmeter Rotor (6.9.23.05G)
Gicar Flowmeter Rotor (6.9.23.05G)
to fit Brasilia
SKU
617903-g
Units
Each
Add to Wishlist
$ 39 49
Out of Stock Get notified when it arrives
Volumetric Flowmeter Gicar Ø 1/8" F×F with LED
Volumetric Flowmeter Gicar Ø 1/8" F×F with LED
to fit Brasilia
SKU
620404
Units
Each
Add to Wishlist
$ 130 90
In Stock Ready for Dispatch
2-way MnM solenoid valve 1/8-1/8 inch bsp 110v (complete)
2-way MnM solenoid valve 1/8-1/8 inch bsp 110v (complete)
to fit Brasilia
SKU
700253-11
Units
Each
Add to Wishlist
$ 114 40
Out of Stock Get notified when it arrives
2-way MnM solenoid valve 1/8-1/8 inch bsp 220v (complete)
2-way MnM solenoid valve 1/8-1/8 inch bsp 220v (complete)
to fit Brasilia
SKU
700253-22
Units
Each
Add to Wishlist
$ 92 29
Out of Stock Get notified when it arrives

No parts found matching "". Contact our parts team with your machine serial number and we will help identify the part you need.

SKU brasilia-spare-parts-13
Water inlet valves and flowmeter
Brand Brasilia
Item Returns This item can be returned
Parts to Fit

Diagrams

  1. Brasilia - Group head 'be' solenoid operated
  2. Brasilia - Group head '1a series' solenoid operated
  3. Brasilia - Group head 'b61' solenoid operated
  4. Brasilia - Lever group head
  5. Brasilia - Portafilters and filter baskets
  6. Brasilia - Steam and hot water valves 1
  7. Brasilia - Steam and hot water valves 2
  8. Brasilia - Steam and hot water valves 3
  9. Brasilia - Steam and hot water valves 4
  10. Brasilia - Steam and hot water valves
  11. Brasilia - Water levels and drains
  12. Brasilia - Water inlet valves
  13. Brasilia - Water inlet valves and flowmeter
  14. Brasilia - Touch pads, switches and control boards
  15. Brasilia - Touch pads, switches and control boards
  16. Brasilia - Elements and boiler components
  17. Brasilia - Motors and rotary pumps
