Domobar Picallo Spare Parts PARTS TO FIT VBM COFFEE MACHINES

Domobar Picallo Spare Parts 400660 1-pole push button400660 1-pole push button616686-o-ring460039 spring545308 lock nut 1 4 inch bsp617734 red pilot lamp m10-220v401911 heating element 1350w 220v700043 stainless-steel hose barb male 1-8-inch bsp 6mm700197-8 silicon tubing 5x8mm 1-meter length617160-22 ulka ex5 vibrating pump 1-8-inch bsp thread outlet 220v401378-t heating element gasket

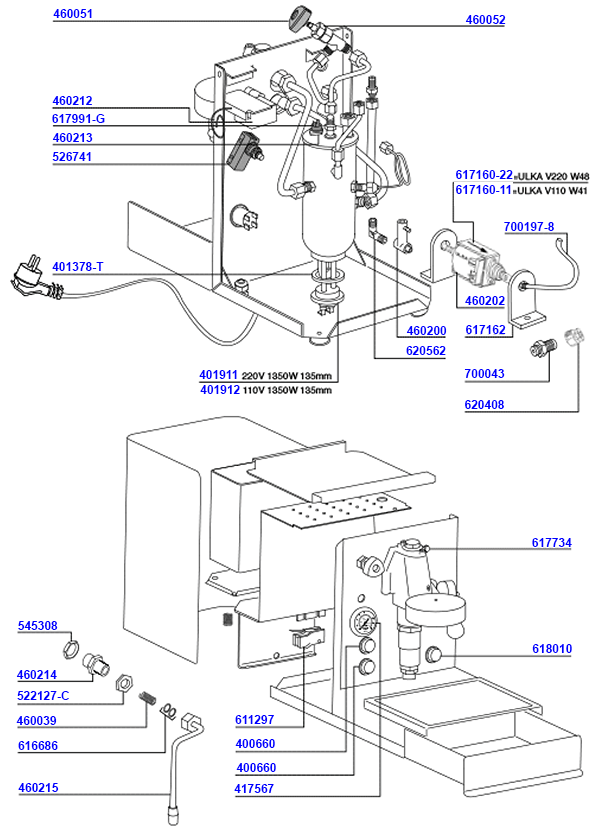

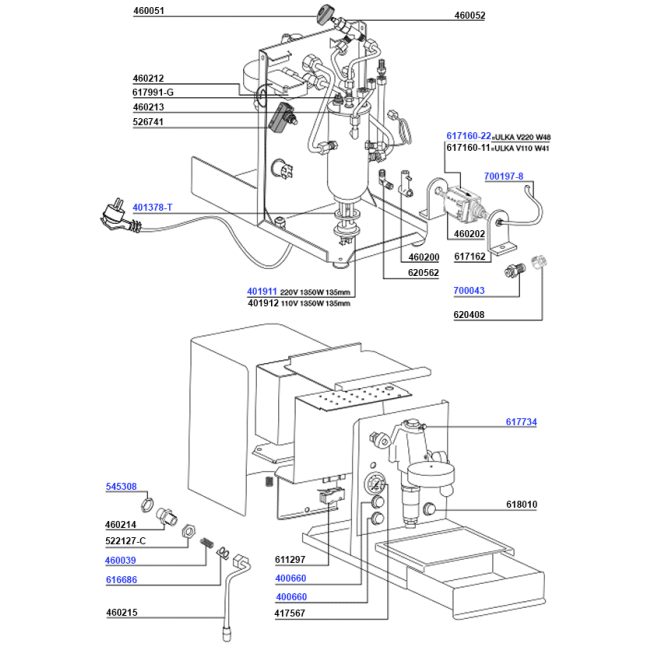

Select Parts from the Diagram or List Below

Red Bipolar Push Button 16A 250V with Indicator Lamp
Red Bipolar Push Button 16A 250V with Indicator Lamp
to fit VBM
SKU
400660
Units
Each
Add to Wishlist
$ 18 59
In Stock Ready for Dispatch
Teflon Heating Element Gasket G. 1" Ø 40.5×33.3×3mm
Teflon Heating Element Gasket G. 1" Ø 40.5×33.3×3mm
to fit VBM
SKU
401378-t
Units
Each
Add to Wishlist
$ 13 70
In Stock Ready for Dispatch
Heating Element 220V 1400W Thread 1" L.130mm
Heating Element 220V 1400W Thread 1" L.130mm
to fit VBM
SKU
401911
Units
Each
Add to Wishlist
$ 141 90
In Stock Ready for Dispatch
Heating Element 110V 1400W 1" Thread L. 130mm
Heating Element 110V 1400W 1" Thread L. 130mm
to fit VBM
SKU
401912
Units
Each
Add to Wishlist
$ 87 12
Out of Stock Get notified when it arrives
Pressure Gauge 0-16 Bar with Capillary Tube – 1/8" F Connection, Ø 50mm Frame
Pressure Gauge 0-16 Bar with Capillary Tube – 1/8" F Connection, Ø 50mm Frame
to fit VBM
SKU
417567
Units
Each
Add to Wishlist
$ 54 89
Out of Stock Get notified when it arrives
Water/Steam Tap Joint Spring Ø 10.8×8×29.8mm
Water/Steam Tap Joint Spring Ø 10.8×8×29.8mm
to fit VBM
SKU
460039
Units
Each
Add to Wishlist
$ 10 40
In Stock Ready for Dispatch
Water/Steam Tap Knob – Square Connection 6×6mm
Water/Steam Tap Knob – Square Connection 6×6mm
to fit VBM
SKU
460051
Units
Each
Add to Wishlist
$ 24 92
Out of Stock Get notified when it arrives
Steam/Water Valve Assembly 1/4"×1/4" for Vibiemme Domobar
Steam/Water Valve Assembly 1/4"×1/4" for Vibiemme Domobar
to fit VBM
SKU
460052
Units
Each
Add to Wishlist
$ 107 80
Out of Stock Get notified when it arrives
Vibration Pump By-Pass 1/8M – 1/8F
Vibration Pump By-Pass 1/8M – 1/8F
to fit VBM
SKU
460200
Units
Each
Add to Wishlist
$ 50 97
Out of Stock Get notified when it arrives
Thermoprotector For Vibrating Pump 100°C
Thermoprotector For Vibrating Pump 100°C
to fit VBM
SKU
460202
Units
Each
Add to Wishlist
$ 14 19
Out of Stock Get notified when it arrives
Singlephase Thermostat "Prodigy TR/86" 3 Connections Screw Regulation Bulb Ø 6.5×90mm
Singlephase Thermostat "Prodigy TR/86" 3 Connections Screw Regulation Bulb Ø 6.5×90mm
to fit VBM
SKU
460212
Units
Each
Add to Wishlist
$ 57 34
Out of Stock Get notified when it arrives
Extension Fitting G. 1/8" M × 1/8" M Hex. 13mm
Extension Fitting G. 1/8" M × 1/8" M Hex. 13mm
to fit VBM
SKU
460213
Units
Each
Add to Wishlist
$ 14 19
Out of Stock Get notified when it arrives
Water Wand Fitting
Water Wand Fitting
to fit VBM
SKU
460214
Units
Each
Add to Wishlist
$ 21 15
Out of Stock Get notified when it arrives
Chromed Steam Pipe Assembly Ø 6mm – Nut 3/8F – L. 110mm
Chromed Steam Pipe Assembly Ø 6mm – Nut 3/8F – L. 110mm
to fit VBM
SKU
460215
Units
Each
Add to Wishlist
$ 74 69
Out of Stock Get notified when it arrives
Chromed Ferrule Nut 3/8" – H. 5mm – Hex. 24mm
Chromed Ferrule Nut 3/8" – H. 5mm – Hex. 24mm
to fit VBM
SKU
522127-c
Units
Each
Add to Wishlist
$ 13 92
Out of Stock Get notified when it arrives
Pump Microswitch "G4" 250V 16A
Pump Microswitch "G4" 250V 16A
to fit VBM
SKU
526741
Units
Each
Add to Wishlist
$ 43 56
Out of Stock Get notified when it arrives
Brass Ferrule Nut Ø 1/4" H. 5mm HEX.17mm
Brass Ferrule Nut Ø 1/4" H. 5mm HEX.17mm
to fit VBM
SKU
545308
Units
Each
Add to Wishlist
$ 3 80
In Stock Ready for Dispatch
Lever Microswitch G26 250V 16A
Lever Microswitch G26 250V 16A
to fit VBM
SKU
611297
Units
Each
Add to Wishlist
$ 38 72
Out of Stock Get notified when it arrives
O-ring R6 EPDM Ø 7.20×1.90mm
O-ring R6 EPDM Ø 7.20×1.90mm
to fit VBM
SKU
616686
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Ulka EX5 Vibratory Pump 120V 60Hz 41W with 1/8" F Connection
Ulka EX5 Vibratory Pump 120V 60Hz 41W with 1/8" F Connection
to fit VBM
SKU
617160-11
Units
Each
Add to Wishlist
$ 93 39
Out of Stock Get notified when it arrives
Ulka Vibrating Pump EX5 48W 230V 50/60Hz with 1/8"F Connection and Ø 6mm Barb Hose Adaptor
Ulka Vibrating Pump EX5 48W 230V 50/60Hz with 1/8"F Connection and Ø 6mm Barb Hose Adaptor
to fit VBM
SKU
617160-22
Units
Each
Add to Wishlist
$ 71 39
In Stock Ready for Dispatch
Square Silent Block for Ulka Vibration Pump
Square Silent Block for Ulka Vibration Pump
to fit VBM
SKU
617162
Units
Each
Add to Wishlist
$ 9 79
Out of Stock Get notified when it arrives
Red Pilot Lamp 250V 120°C — Head Ø 20mm, Hole Ø 10mm
Red Pilot Lamp 250V 120°C — Head Ø 20mm, Hole Ø 10mm
to fit VBM
SKU
617734
Units
Each
Add to Wishlist
$ 11 99
In Stock Ready for Dispatch
Contact Thermostat 145°C Pin M4
Contact Thermostat 145°C Pin M4
to fit VBM
SKU
617991-g
Units
Each
Add to Wishlist
$ 27 39
Out of Stock Get notified when it arrives
Red Bright Bipolar Switch 16A 250V Off-On Ø 25mm
Red Bright Bipolar Switch 16A 250V Off-On Ø 25mm
to fit VBM
SKU
618010
Units
Each
Add to Wishlist
$ 14 52
Out of Stock Get notified when it arrives
Ulka Pump Fitting 90° G. 1/8F Ø 6mm
Ulka Pump Fitting 90° G. 1/8F Ø 6mm
to fit VBM
SKU
620408
Units
Each
Add to Wishlist
$ 30 69
Out of Stock Get notified when it arrives
"L" Fitting G. 1/8M - 1/8M - Hex. 10mm
"L" Fitting G. 1/8M - 1/8M - Hex. 10mm
to fit VBM
SKU
620562
Units
Each
Add to Wishlist
$ 15 29
Out of Stock Get notified when it arrives
Nickel-plated Brass Hose Adaptor G.1/8M – Ø 6mm
Nickel-plated Brass Hose Adaptor G.1/8M – Ø 6mm
to fit VBM
SKU
700043
Units
Each
Add to Wishlist
$ 13 09
In Stock Ready for Dispatch
Silicone Tube Ø 5×8mm Shore 60
Silicone Tube Ø 5×8mm Shore 60
to fit VBM
SKU
700197-8
Units
Each
Add to Wishlist
$ 28 49
In Stock Ready for Dispatch

No parts found matching "". Contact our parts team with your machine serial number and we will help identify the part you need.

SKU vbm-home-spare-parts-7
Domobar Picallo Spare Parts
Brand VBM
Item Returns This item can be returned
Parts to Fit

Diagrams

  1. Vibrating Pumps
  2. Group head e61 lever operated
  3. Portafilters and Filter Baskets
  4. Domobar Super Steam Valve
  5. Domobar Super Boiler
  6. Domobar Picallo Spare Parts
  7. VBM Domobar Junior Steam Valve
  8. VBM Domobar Super Steam Valve
  9. VBM Domobar Steam Valve
  10. VBM Domobar Junior HX Boiler & Element Components
  11. VBM Domobar Junior 2B Boiler & Element Components
  12. VBM Domobar Boiler & Element Components
