Domobar Super Steam Valve PARTS TO FIT VBM COFFEE MACHINES

Domobar Super Steam Valve 620405 gicar flowmeter 1-8-inch bsp with led 530143 turbine o-ring 617903-g gicar flowmeter impeller wheel 615978-t flowmeter and soleniod plug 620405-c flowmeter cover 417567 manometer gauge mini classic brasilia 40mm manometer-gauge-40mm-2-5-bar 620433 tube hot water 700269 o-ring 460091 sleeve 616686 o-ring 460039 spring 522127-c chrome lock nut 3-8 inch bsp 700269 o-ring 460051 steam valve knob 551937 stainless steel screw tc-t-m4x12 460210 chromed-steam-pipe 460209 water steam valve body 460208 silicone valve gasket-o9-5x5h 460207 460206 460211
Parts to Fit
4 payments of $0.00
Buy now, Pay Later

SKU vbm-home-spare-parts-5
Domobar Super Steam Valve
Brand VBM

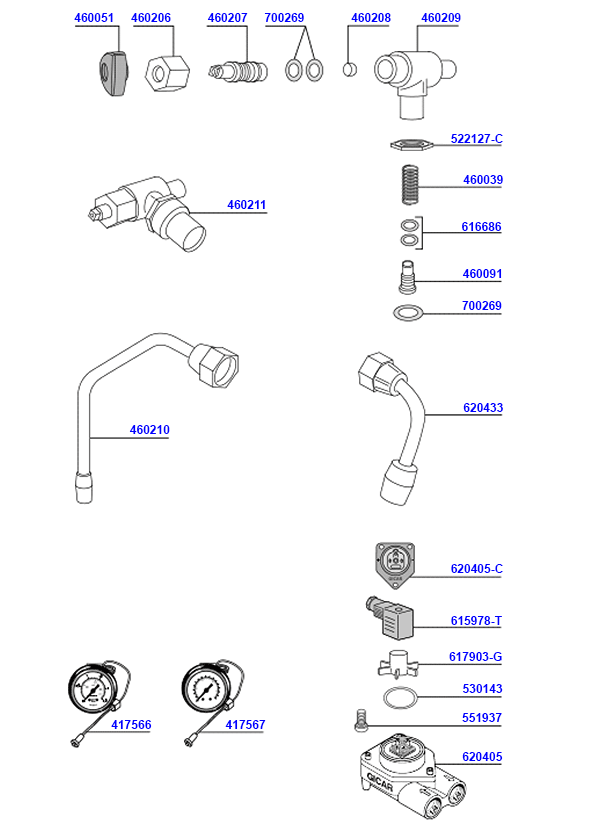

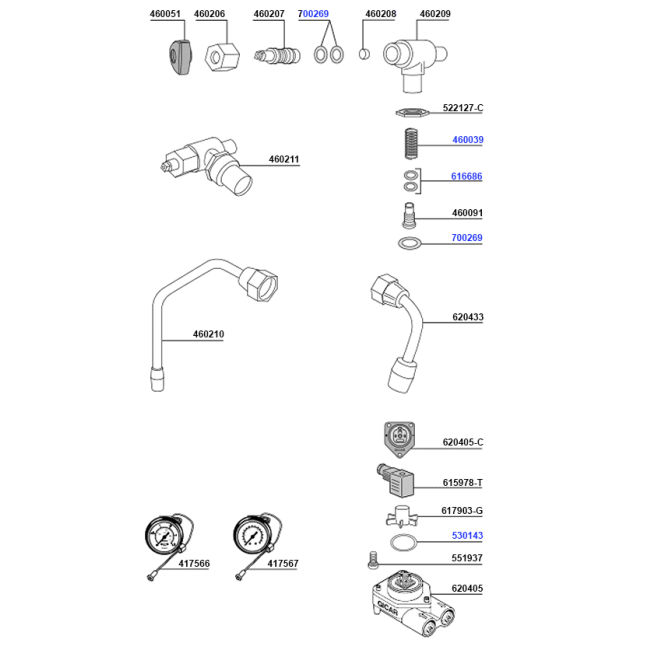

Select Parts from the Diagram above, or from the list below

Manometer 0–2.5 Bar with Capillary Tube – 1/8" F Connection – Frame Ø 50mm
Manometer 0–2.5 Bar with Capillary Tube – 1/8" F Connection – Frame Ø 50mm
to fit VBM
SKU
417566
Units
Each
Add to Wishlist
$ 54 89
Out of Stock
Pressure Gauge 0-16 Bar with Capillary Tube – 1/8" F Connection, Ø 50mm Frame
Pressure Gauge 0-16 Bar with Capillary Tube – 1/8" F Connection, Ø 50mm Frame
to fit VBM
SKU
417567
Units
Each
Add to Wishlist
$ 54 89
Out of Stock
Water/Steam Tap Joint Spring Ø 10.8×8×29.8mm
Water/Steam Tap Joint Spring Ø 10.8×8×29.8mm
to fit VBM
SKU
460039
Units
Each
Add to Wishlist
$ 10 40
In Stock Ready for Dispatch
Water/Steam Tap Knob – Square Connection 6×6mm
Water/Steam Tap Knob – Square Connection 6×6mm
to fit VBM
SKU
460051
Units
Each
Add to Wishlist
$ 24 92
In Stock Ready for Dispatch
Steam Wand Bushing Ø 14.8/10.2×6×21.2mm
Steam Wand Bushing Ø 14.8/10.2×6×21.2mm
to fit VBM
SKU
460091
Units
Each
Add to Wishlist
$ 15 51
Out of Stock
Water/Steam Tap Silicone Gasket Ø 10×5mm
Water/Steam Tap Silicone Gasket Ø 10×5mm
to fit VBM
SKU
460208
Units
Each
Add to Wishlist
$ 9 30
In Stock Ready for Dispatch
Chromed Steam/Water Valve Body with Joint Connection 3/8" M
Chromed Steam/Water Valve Body with Joint Connection 3/8" M
to fit VBM
SKU
460209
Units
Each
Add to Wishlist
$ 68 80
Out of Stock
Chromed Steam Pipe Assembly Ø 8mm with 3/8F Nut – 175mm Length
Chromed Steam Pipe Assembly Ø 8mm with 3/8F Nut – 175mm Length
to fit VBM
SKU
460210
Units
Each
Add to Wishlist
$ 57 29
Out of Stock
Chromed Ferrule Nut 3/8" – H. 5mm – Hex. 24mm
Chromed Ferrule Nut 3/8" – H. 5mm – Hex. 24mm
to fit VBM
SKU
522127-c
Units
Each
Add to Wishlist
$ 13 92
Out of Stock
Silicone Flowmeter Lid Gasket OR 2112 Ø 28.30×1.78mm
Silicone Flowmeter Lid Gasket OR 2112 Ø 28.30×1.78mm
to fit VBM
SKU
530143
Units
Each
Add to Wishlist
$ 4 24
In Stock Ready for Dispatch
Stainless Steel Flowmeter Head Fixing Screw Tc+ M4×12mm
Stainless Steel Flowmeter Head Fixing Screw Tc+ M4×12mm
to fit VBM
SKU
551937
Units
Each
Add to Wishlist
$ 4 90
Out of Stock
Flowmeter Connector Assembly 15.5×15.5×25.5mm
Flowmeter Connector Assembly 15.5×15.5×25.5mm
to fit VBM
SKU
615978-t
Units
Each
Add to Wishlist
$ 8 69
Out of Stock
O-ring R6 EPDM Ø 7.20×1.90mm
O-ring R6 EPDM Ø 7.20×1.90mm
to fit VBM
SKU
616686
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Gicar Flowmeter Rotor (6.9.23.05G)
Gicar Flowmeter Rotor (6.9.23.05G)
to fit VBM
SKU
617903-g
Units
Each
Add to Wishlist
$ 39 49
Out of Stock
Gicar Flowmeter G. 1/4F–1/4F with LED – Orifice Ø 1.15mm NSF (9.0.25.02G)
Gicar Flowmeter G. 1/4F–1/4F with LED – Orifice Ø 1.15mm NSF (9.0.25.02G)
to fit VBM
SKU
620405
Units
Each
Add to Wishlist
$ 141 90
Out of Stock
Flowmeter Cover Lid for Volumetric Flowmeter LED
Flowmeter Cover Lid for Volumetric Flowmeter LED
to fit VBM
SKU
620405-c
Units
Each
Add to Wishlist
$ 72 49
Out of Stock
Chromed Water Pipe Assembly Ø 8mm — Nut 3/8F — L.90mm
Chromed Water Pipe Assembly Ø 8mm — Nut 3/8F — L.90mm
to fit VBM
SKU
620433
Units
Each
Add to Wishlist
$ 60 72
Out of Stock
Viton O-ring 03043 Ø 10.77×2.62mm
Viton O-ring 03043 Ø 10.77×2.62mm
to fit VBM
SKU
700269
Units
Each
Add to Wishlist
$ 4 90
In Stock Ready for Dispatch
Manometer / Gauge 40mm - 4 BAR
Manometer / Gauge 40mm - 4 BAR
to fit VBM
SKU
VBM-MANMDOE40025
Units
Each
Add to Wishlist
$ 87 89
